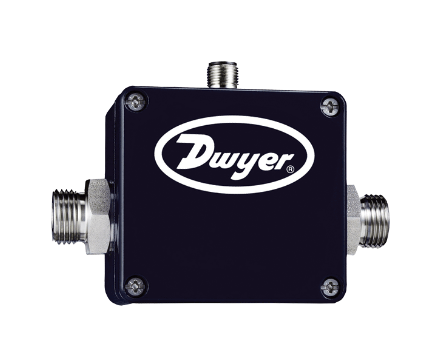

Dwyer Instruments MFS-11 | Magnetic flow sensor | Range 0.25 to 5.3 GPM (1 to 20 LPM) | 1/4 I.D. | 1/2" NPT process connection | Frequency output signal - generaltechuae

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : MFS-11

The compact, 316 SS body, in-line flowmeters with pulse and optional analog 4–20 mA output are called Model MFS-11 Magnetic Inductive Flow Sensors. It is offered with process connection sizes of 1/2" and 1" NPT and flow ranges of 0.25 to 52.8 GPM (1 to 200 LPM).

Availability: Sold out

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Accuracy	+/-2% of reading
Connection	Electrical: Plug connector M12x1
Connection	Process: 1/2" NPT
Current consumption [mA]	Max 80 mA
Enclosure Rating	NEMA 4 (IP65)
Flow Indication	LED green, flow proportional blinking
Loop Resistance	250 ¢ž¦
Manufacturer	Dwyer Instruments
Material	Wetted: Electrodes: 316 SS Process connections: MFS: 316 SS Measuring pipe: MFS: PEEK-GF30 Gasket: EPDM
Maximum Operating Pressure	MFS: 232 psi (16 bar)
Maximum operating temperature	Process: 32 to 194°F (0 to 90°C) Ambient: 41 to 158°F (5 to 70°C)
Minimum Conductivity of Medium	50 µS/cm
Output	Frequency: Square-wave, NPN or PNP Analog: 4-20 mA
POWER CONSUMPTION	0.6 W
Power	24 VDC +/-10%
Range	0.25 to 5.3 GPM (1 to 20 LPM)
Repeatability	1%
Response Time	< 500 ms
Type	Magnetic Flow Sensor
Weight	1.5 lb (0.68 kg)

Long lifespan without any wear and tear on the working parts.
Can be used in situations when the flow has no mechanical components and the media is polluted.
Low pressure drop is produced by a pipe cross-section devoid of obstructions.
Not impacted by variations in concentration, density, viscosity, or temperature.

DOWNLOAD CATALOG
