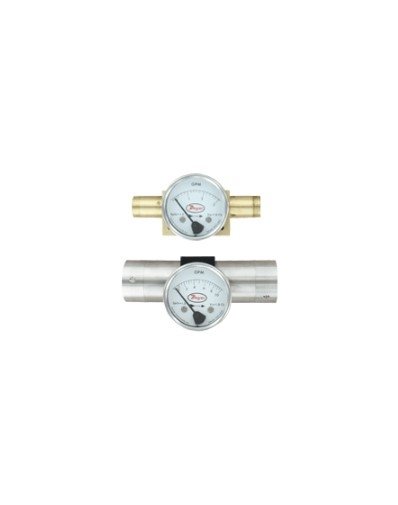

Dwyer Instruments DTFW-2S-10W | Variable-Area Flowmeter for Liquids & Oils | Range 0-10 GPM water | 1/2" NPT | SS body - generaltechuae

Dwyer DTFW-2S-10W | Variable-Area Liquid Flowmeter | 0-10 GPM water, 1/2" NPT, SS body

Part Number : DTFW-2S-10W

Dwyer DTFW-2S-10W: a 1/2" NPT variable-area flowmeter with a 0-10 GPM range, set up for water. For a horizontal line, the DTFW-2S-10W comes pre-calibrated and its 316 stainless steel body is rated to 3000 psig (200 bar).

  • ±2% FS accuracy and ±1% FS repeatability on the DTFW-2S-10W
  • 2.5" (63.5 mm) dial reading 0-10 GPM water (DTFW-2S-10W)
  • DTFW-2S-10W wetted parts: 302 SS range spring, PTFE-coated magnet, acetal or PTFE metering cone, Buna seals
  • DTFW-2S-10W weighs 5 lb (2.27 kg)
  • DTFW-2S-10W operating temperature: -40 to 200°F (-40 to 93°C)
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
