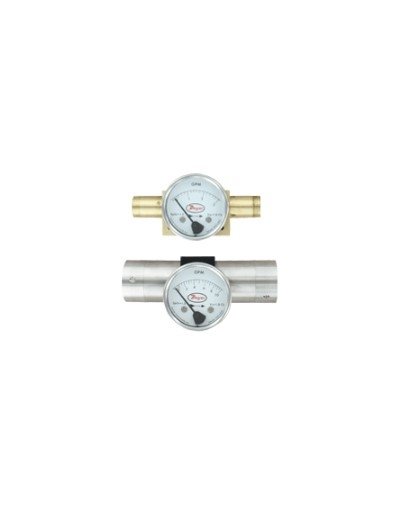

Dwyer Instruments DTFW-2B-10W | Variable-Area Flowmeter for Liquids & Oils | Range 0-10 GPM water | 1/2" NPT | Brass body - generaltechuae

Dwyer DTFW-2B-10W | Variable-Area Liquid Flowmeter | 0-10 GPM water, 1/2" NPT, brass body

Part Number : DTFW-2B-10W

The Dwyer DTFW-2B-10W is a variable-area flowmeter calibrated for water, reading 0-10 GPM through a 1/2" NPT connection. The DTFW-2B-10W is rated to 3000 psig (200 bar) with a brass body and is calibrated for installation in a horizontal line.

  • ±2% FS accuracy and ±1% FS repeatability on the DTFW-2B-10W
  • 2.5" (63.5 mm) dial reading 0-10 GPM water (DTFW-2B-10W)
  • DTFW-2B-10W wetted parts: 302 SS range spring, PTFE-coated magnet, acetal or PTFE metering cone, Buna seals
  • DTFW-2B-10W weighs 5 lb (2.27 kg)
  • DTFW-2B-10W operating temperature: -40 to 200°F (-40 to 93°C)
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
