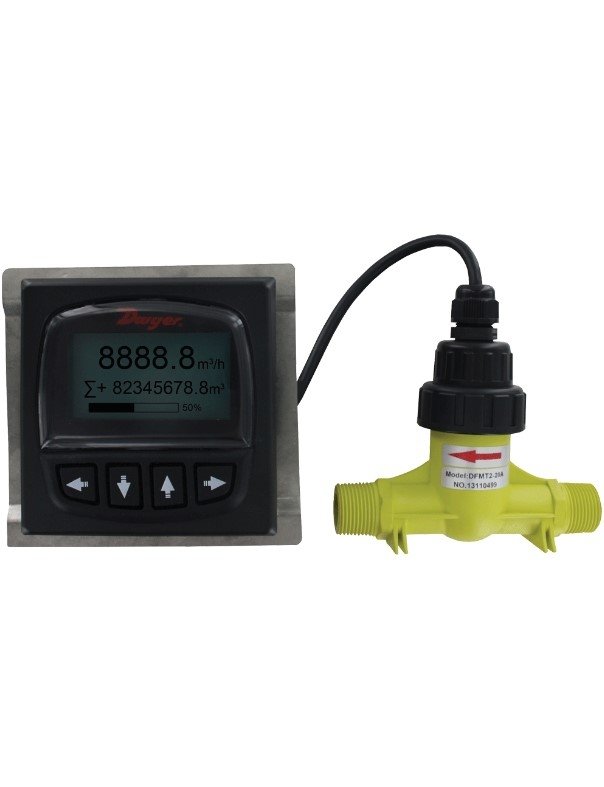

Dwyer DFMT2-20A | Remote Digital Flow Transmitter | 3/4" NPT, 4-20 mA/Pulse
The two-piece Dwyer DFMT2-20A remote flow transmitter uses a 3/4" NPT paddlewheel sensor and a separate backlit display unit, helpful in cramped installations including RO water treatment. The corrosion-resistant PVDF sensor uses paddlewheel technology for long service life.
- PVDF wetted sensor, 3/4" NPT
- Totaliser can be reset at any time
- Analog 4-20 mA or pulse up to 2 kHz
- Accuracy +/-1.5% of full scale
- 12 to 24 VDC supply, 2 W
- Remote two-piece build for 3/4" NPT installations where panel space is tight
- Specifications
- Features
- Downloads
| Part Number | DFMT2-20A |
| Brand | Dwyer |
| Type | Remote digital flow transmitter (two-piece) |
| Accuracy | ±1.5% FS |
| Process Connection | 3/4" NPT |
| Display | LCD 2.38 x 1.25" (60.33 x 31.75 mm) |
| Wetted Materials | PVDF sensor and impeller, ceramic shaft, fluoroelastomer o-rings |
| Power | 12 to 24 VDC, 2 W |
| Output | 4-20 mA or pulse (user selectable) |
| Repeatability | ±0.5% FS |
| Max. Operating Pressure | 145 psi (1.0 MPa) |
| Process Temperature | -4 to 194 °F (-20 to 90 °C) |
| Enclosure | ABS plastic, IP65 |
| Totaliser Maximum | 9,999,999,999 |
- Because of its two-piece form, which enables the user to divide the control display from the application, it is perfect for spaces with limited space.
- With a visible indicator bar indicating the percentage of maximum flow, the sizable backlit LCD display specifies both immediate and cumulative flow.
- Long operational life, corrosion-resistant PVDF sensor, and high precision paddlewheel technology.
- The user-resettable totalizer makes it perfect for totalizing a single batch at any moment.
- Unauthorized alterations are prevented via security password protection.
