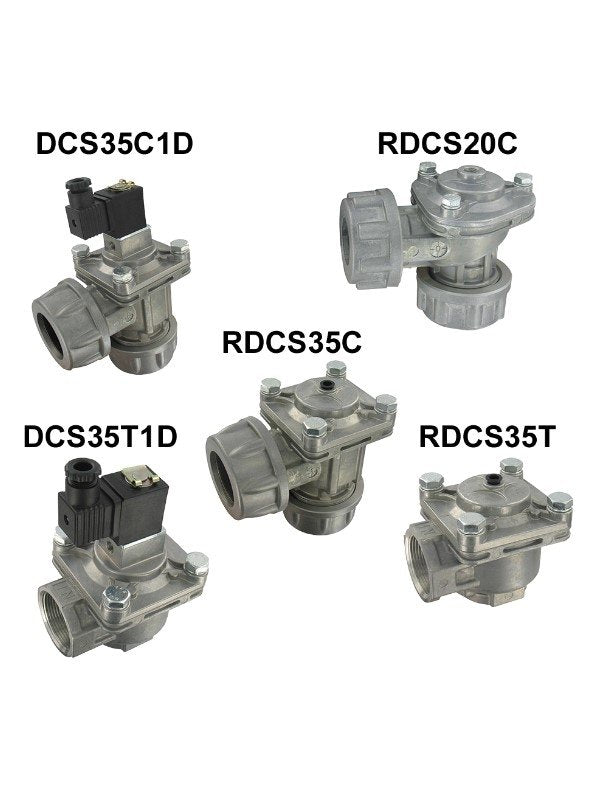

Dwyer DCS20T2D | Springless Dust Collector Valve

Name: Dwyer DCS20T2D | Springless Dust Collector Valve
Brand: Dwyer
SKU: DCS20T2D
Availability: OutOfStock

Part Number : DCS20T2D

For the cleaning air pulse in dust collectors run by Series DCT1000 or DCT500 timer boards, choose the Dwyer DCS20T2D: a springless diaphragm valve with integrated coil. Its springless design gives a strong, dependable cleaning pulse on the DCS20T2D.

Integrated coil, DIN electrical connection (DCS20T2D)
Body and cover in aluminium with a TPU diaphragm disc (DCS20T2D)
Handles 0.3-8.6 bar line pressure (DCS20T2D)
Media -20 to 85 °C, ambient -20 to 60 °C, NEMA 4X (IP65), 12 W, CE - DCS20T2D

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Part Number	DCS20T2D
Brand	Dwyer
Type	Springless Dust Collector Valve
Solenoid	Integrated coil
Electrical Connection	DIN
Wetted Materials	Aluminium body, TPU diaphragm disc, NBR solenoid seals
Operating Pressure	0.3 to 8.6 bar (4.4 to 124.7 psi)
Media Temperature	-20 to 85 °C (-4 to 185 °F)
Ambient Temperature	-20 to 60 °C
Enclosure Rating	NEMA 4X (IP65)
Power Consumption	12 W; inrush 17 VA, holding 14.5 VA
Approvals	CE

Diaphragm made of thermoplastic polyurethane for extended life.
High flow rate to provide thorough cleaning.
The spring-free diaphragm design removes it.
The valve can be installed in any orientation.
Quick response time both on and off.
