DMQ QST/2 | Pipe Wall Thickness Gauge for Production | 2 channels, pipes 20–250 mm
Part Number : QST/2
The DMQ QST/2 measures plastic pipe walls on two channels at once, with two transducers placed around the pipe on the extrusion line. Readings are taken in real time and sent to the supplied PC software by Bluetooth or RS232. The mechanical fixture is not part of the supply.
Key features
- 2 simultaneous channels, 2 transducers
- Echo-echo range 0.5–200 mm
- Gain adjustable per channel, 6–86 dB
- A-Scan mode for channel adjustment
- Encoder input for pipe length
- Relay output alarms by minimum and maximum

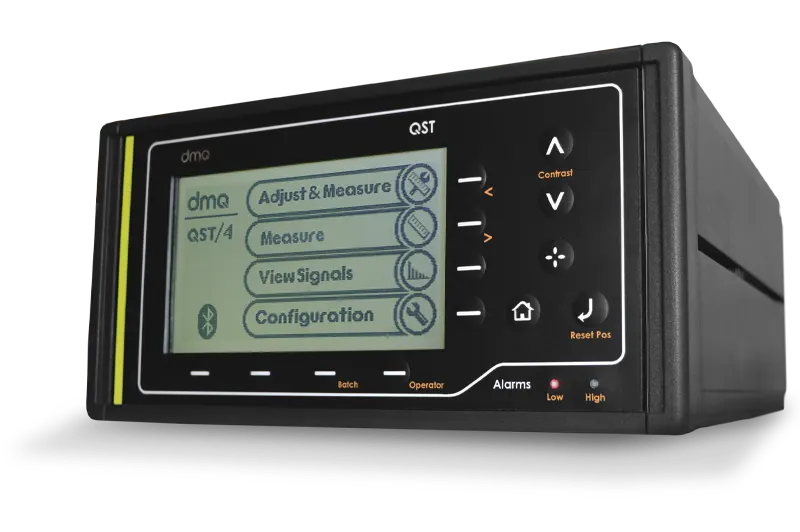

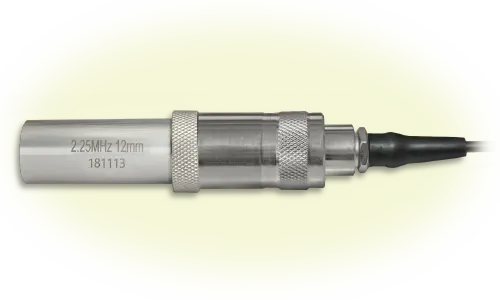

The QST/2 is delivered with the QST electronic unit, its 2 or 5 MHz transducer(s), transducer extensions and connection cables, and a pendrive with acquisition software and documentation.
For pricing, please contact our experts.
