DMQ QST/1 | Pipe Wall Thickness Gauge for Production | 1 channel, pipes 20–250 mm
Part Number : QST/1
The DMQ QST/1 is the single-channel configuration of the QST system for continuous wall-thickness measurement of plastic pipes during production. One transducer measures pipes from 20 to 250 mm diameter in echo-echo mode, helping control extrusion and raw-material use. The mechanical system is not included.
Key features
- 1 channel with 1 transducer
- Wall range 0.5–200 mm, pipes 20–250 mm diameter

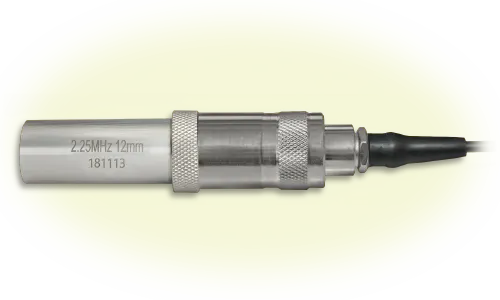

- 2 or 5 MHz straight transducer
- Min/max alarms with light, on-screen and relay output
- Save data by time or by encoder distance
- Bluetooth and RS232 to PC software

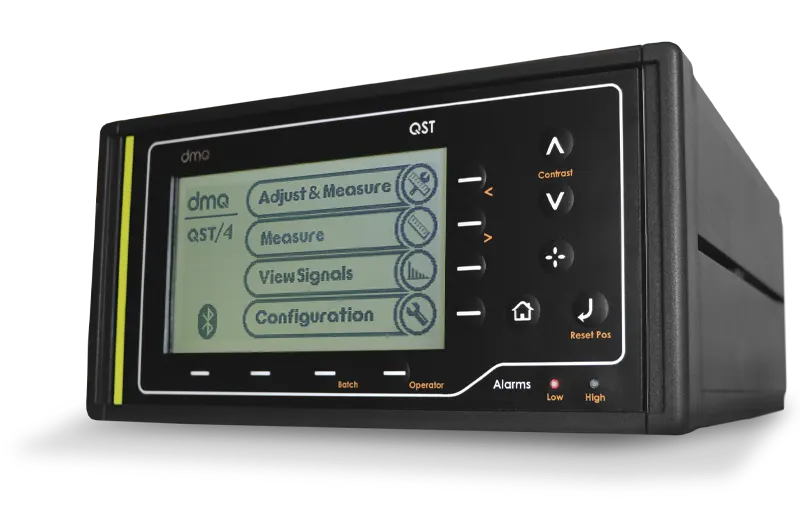

The QST/1 is delivered with the QST electronic unit, its 2 or 5 MHz transducer(s), transducer extensions and connection cables, and a pendrive with acquisition software and documentation.
For pricing, please contact our experts.
