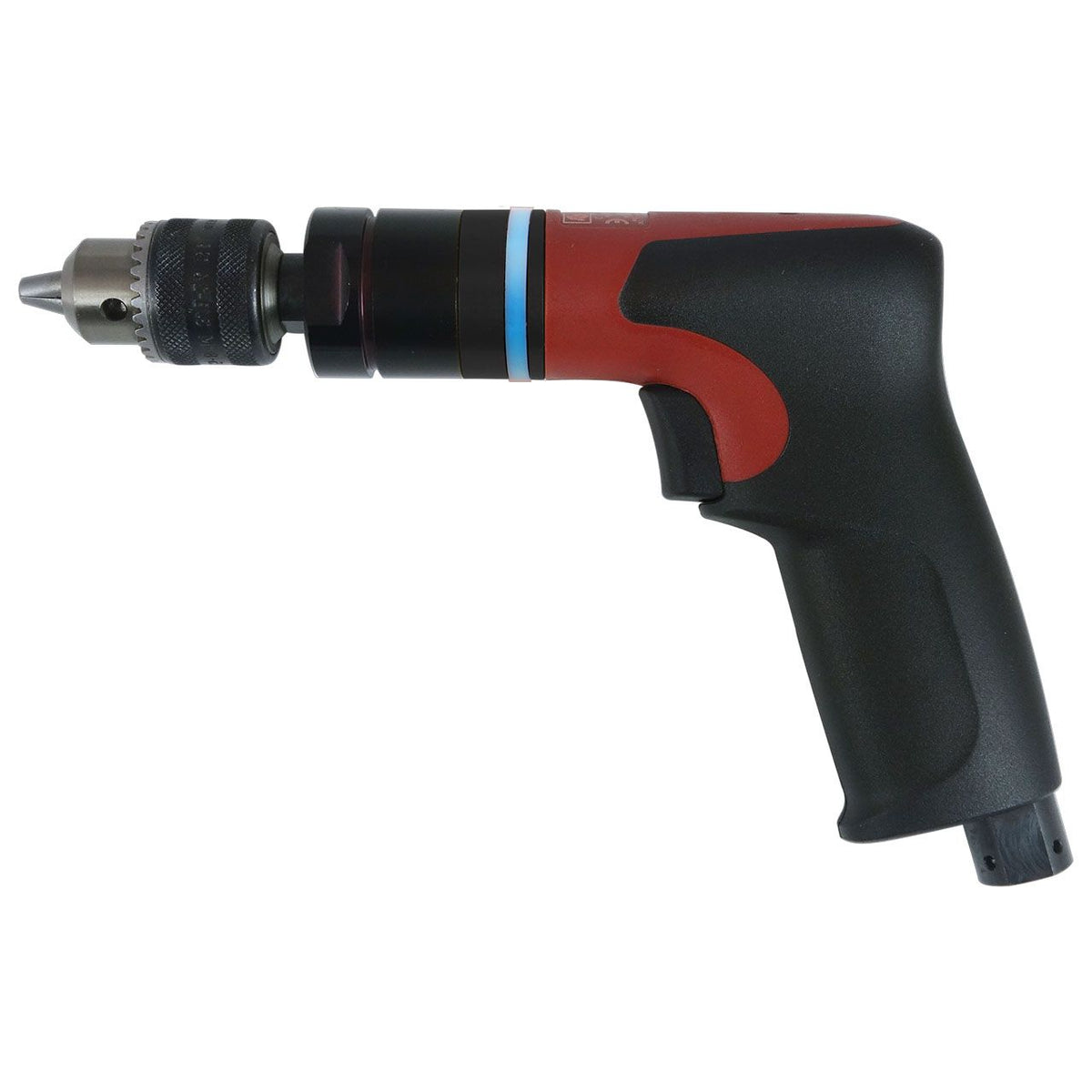

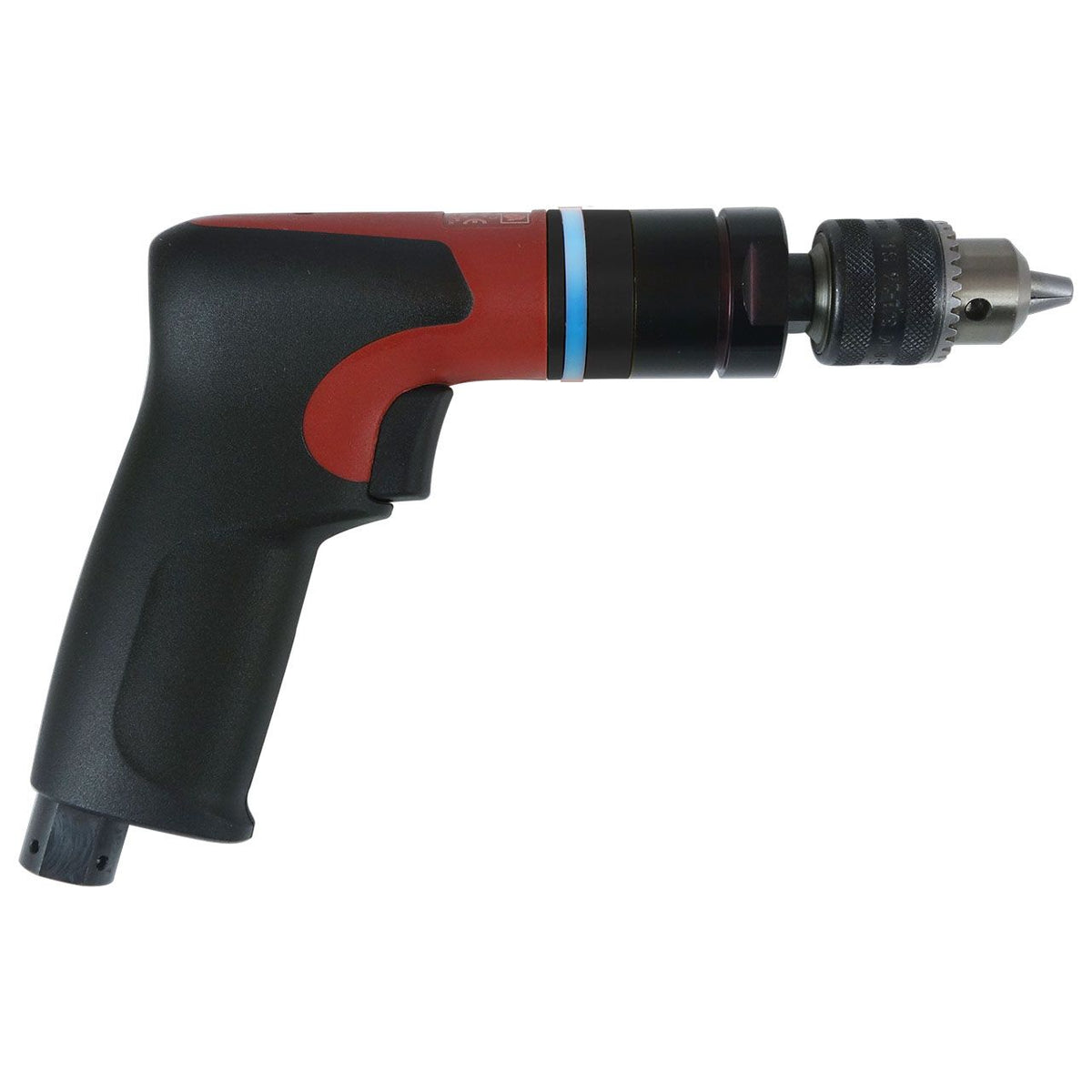

Desoutter DR350-P4500-C8 | Pneumatic Pistol Drill | 4500 rpm, 2.7 Nm, 8 mm Keyed Chuck
The Desoutter DR350-P4500-C8 (part number 2051473824) is a pneumatic pistol drill running at 4500 rpm with 2.7 Nm (2 ft.lbf) stall torque. A keyed chuck with 8 mm maximum capacity comes fitted to the DR350-P4500-C8 on its 3/8-24 mount. The DR350 range behind the DR350-P4500-C8 offers 350 W of power, high repeatability and low maintenance for standard drilling applications.
Key features
- Uses 9.5 l/s (20 cfm) of air at free speed; the DR350-P4500-C8 needs at least a 6 mm hose over a 5 m run
- Progressive trigger on the DR350-P4500-C8, with vibration <2.5 m/s², sound level 77 dba
- The DR350-P4500-C8 weighs 0.62 kg (1.37 lb) and is 136 mm (5.35 in) long, in composite construction
- The DR350-P4500-C8 is compatible with a range of Desoutter drilling accessories
- 5 blade air motor and long-life gears in the DR350-P4500-C8 for reliability and low maintenance
- Specifications
- Downloads
| Part Number | 2051473824 |
| Model | DR350-P4500-C8 |
| Brand | Desoutter |
| Tool type | Pistol |
| Free Speed | 4500 rpm |
| Stall torque | 2.7 Nm (2 ft.lbf) |
| Chuck type | Keyed |
| Chuck max capacity (mm) | 8 |
| Chuck mount | 3/8-24 |
| Air consumption at free speed | 9.5 l/s (20 cfm) |
| Weight | 0.62 kg (1.37 lb) |
| Length (L) | 136 mm (5.35 in) |
| Vibration (m/s²) | <2.5 |
| Sound Power (dba) | 77 dba |
