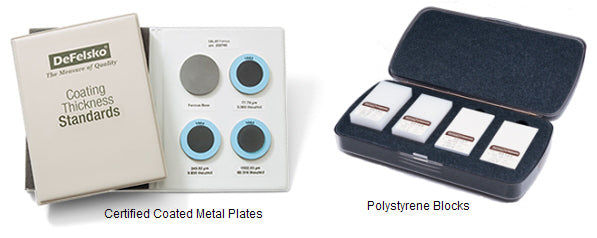

DeFelsko STDA3 | A3 Certified Coated Metal Plates | Aluminium, 75 to 500 µm
Part Number : STDA3
Unlike the other aluminium sets, the DeFelsko STDA3 A3 certified coated metal plates start at 75 µm rather than zero, running up to 500 µm (20 mils). DeFelsko matches this set to PosiTector 200 and 200 B ultrasonic gauges, for checking their accuracy and operation.
Key features
- Plate values (approx.): 75 µm (3 mils), 125 µm (5 mils), 250 µm (10 mils) and 500 µm (20 mils)
- Coating/substrate: epoxy on aluminium (non-ferrous)
- Accuracy: ±0.43 µm (±0.017 mil)
- Four plates in a protective binder; plate diameter 38 mm (1.5 in), measurement area 25 mm (1 in)
- Individually serialised with a Certificate of Calibration traceable to NIST or PTB
- Labelled in metric and imperial units
For pricing, please contact our experts.
