DeFelsko PRBFNDS | PosiTector 6000 FNDS Probe Only | Ferrous/Non-Ferrous, 0–1500 µm, Duplex Cabled
Part Number : PRBFNDS

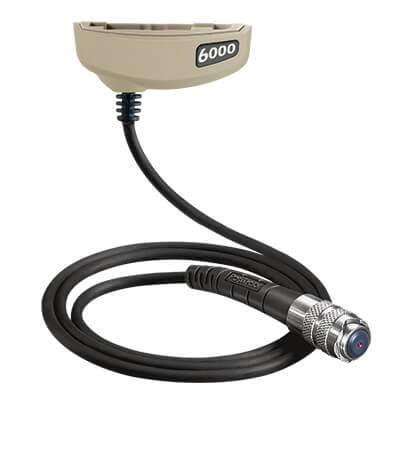

The DeFelsko PRBFNDS is the PosiTector 6000 FNDS probe, sold as the probe only, so a PosiTector gage body is required. It is a cabled duplex probe that reports the paint and zinc layer thicknesses of a duplex system (paint or powder over galvanising) in a single reading, measuring coatings on both ferrous and non-ferrous metals, recognising the substrate automatically over a 0–1500 µm (0–60 mils) range. Coating inspectors and QC staff fit it to an existing Standard or Advanced body, since every PosiTector body accepts every probe.
Key features
- Measuring range 0–1500 µm (0–60 mils); accuracy ±(1 µm + 1%) 0–50 µm; ±(2 µm + 1%) >50 µm
- Uses magnetic and eddy current principles together; zinc thickness is calculated from the combined and paint readings
- With duplex mode off it works as a standard ferrous/non-ferrous probe
For pricing, please contact our experts.
