DeFelsko PRBF90ES | PosiTector 6000 F90ES Probe Only | Ferrous, 0–1150 µm, 90° Extended Microprobe
Part Number : PRBF90ES

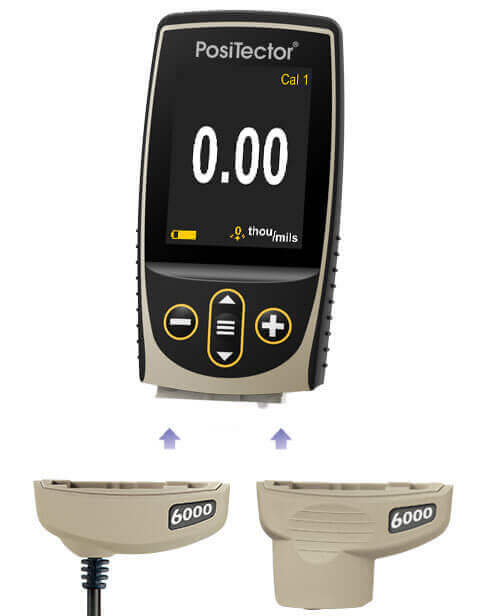

The DeFelsko PRBF90ES is the PosiTector 6000 F90ES probe, sold as the probe only, so a PosiTector gage body is required. It is a right-angle microprobe on an extended 350 mm (13.75 in) shaft, the longest of the microprobes, for reaching deep into confined steel parts, measuring coatings on steel and other ferrous metals over a 0–1150 µm (0–45 mils) range. Coating inspectors and QC staff fit it to an existing Standard or Advanced body, since every PosiTector body accepts every probe.
Key features
- Measuring range 0–1150 µm (0–45 mils); accuracy ±(0.5 µm + 1%) 0–100 µm; ±(2 µm + 3%) >100 µm
- Extended probe length of 350 mm (13.75 in)
- Right-angle head for low-headroom areas
- Smallest DeFelsko measuring tip, designed for thin films on small parts and edges
- Certificate of Calibration traceable to NIST or PTB; the probe stores its own calibration for full interchangeability
For pricing, please contact our experts.
