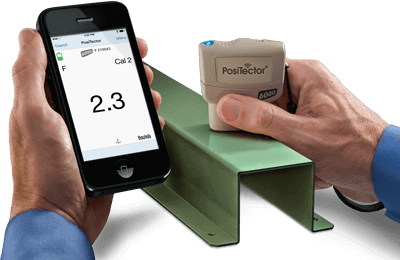

DeFelsko N45S3 | PosiTector 6000 N45S Coating Thickness Gauge, Advanced | 0–625 µm, Advanced Body
Part Number : N45S3
Built on the Advanced gage body, the DeFelsko N45S3 combines it with the PosiTector 6000 N45S probe, a 45° microprobe for coatings on non-ferrous metal substrates. With the N45S fitted, the gauge reads 0–625 µm (0–25 mils). For awkward non-ferrous parts, this configuration helps inspectors who report against SSPC-PA 2, ISO 19840 or IMO PSPC and transfer data by WiFi or Bluetooth.
Key features
- Range 0–625 µm (0–25 mils)
- Accuracy ±(0.5 µm + 1%) 0–100 µm; ±(2 µm + 3%) >100 µm
- Smallest PosiTector 6000 measuring tip, suited to thin films
- For small parts, hard-to-reach areas and close to edges
- Advanced gage body stores 250,000 readings in up to 1,000 batches
- WiFi and Bluetooth 4.0 for PosiSoft.net and the PosiTector App
- Certificate of Calibration traceable to NIST or PTB included
For pricing, please contact our experts.
