DeFelsko IRT1 | PosiTector IRT Infrared Thermometer, Standard | -70 to 380 °C, 5.7:1 D:S

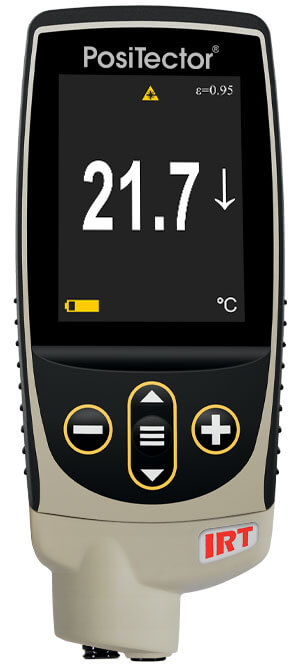

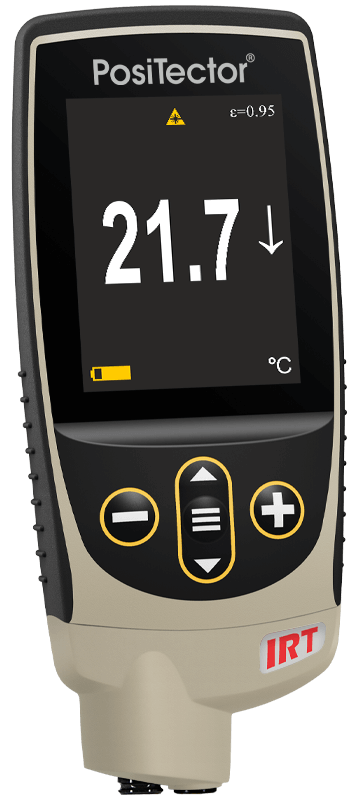

The DeFelsko IRT1 is the PosiTector IRT infrared thermometer supplied with the Standard gage body. It measures surface temperature without contact from -70 to 380 °C, using a laser pointer for aiming and a 5.7:1 distance-to-spot ratio suited to larger areas. Painters and inspectors use it to check substrate temperature before and during coating work.
Key features
- Temperature range -70 to 380 °C (-94 to 716 °F)
- Accuracy ±1 °C + 1% (at 23 °C ambient), resolution 0.1 °C
- 5.7:1 distance-to-spot ratio with Class 2 laser pointer
- Emissivity: 7 preset materials, custom value or adjust to a known temperature
- Statistics Scan mode and Smart Trend indicators for rising, falling or stable readings
- Standard gage body stores 1,000 readings per probe
- Specifications
- Downloads
| Part Number | IRT1 |
| Brand | DeFelsko |
| Temperature Range | -70 to 380 °C (-94 to 716 °F) |
| Accuracy | ±1 °C + 1% (at 23 °C ambient) |
| Resolution | 0.1 °C / 0.1 °F |
| Distance to Spot | 5.7:1 |
| Laser Pointer | Class 2, <1 mW |
| Spectral Response | 2 – 14 µm |
| Emissivity | Adjustable |
| Gage Body | Standard (1,000 readings per probe) |
| Calibration | Long Form certificate, NIST traceable |
