DeFelsko DPMD3 | PosiTector DPM D Dew Point Meter, Advanced | 1/2 in NPT Cabled Probe, Advanced Body

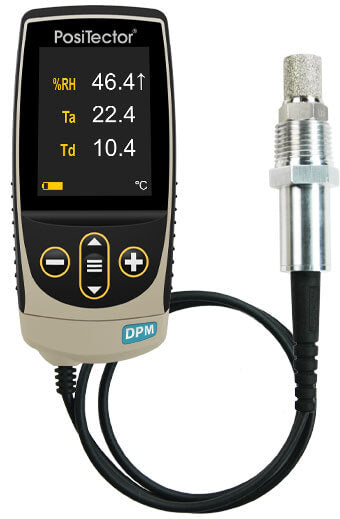

Supplied on the Advanced gage body, the DeFelsko DPMD3 PosiTector DPM D dew point meter uses the cabled probe with 1/2 in npt threads to record dew point, relative humidity and air temperature. The Advanced body adds wet bulb temperature, 250,000-dataset memory, trend charts, user-defined alarms and WiFi/Bluetooth upload, which suits long-term monitoring with the PosiTector DPM D probe.
Key features
- 1/2 in NPT threads for insertion into tanks and pipes (max 0.69 MPa / 100 psi)
- Sintered aluminium housing protects the sensors
- Advanced body: 250,000 datasets in up to 1,000 batches
- WiFi and Bluetooth; email alerts on WiFi
- Relative humidity 0–100%, ±3%
- IP65-rated gage body enclosure
- Specifications
- Downloads
| Part Number | DPMD3 |
| Brand | DeFelsko |
| Probe Model | PosiTector DPM D |
| Probe Style | Cabled probe with 1/2 in NPT threads |
| Gage Body | Advanced |
| Measured Parameters | Dew point, relative humidity and air temperature |
| Air Temperature | -40 to 80 °C, ±0.5 °C |
| Relative Humidity | 0–100%, ±3% |
| Dew Point | -60 to 80 °C, ±3 °C (RH dependent) |
| Connection | 1/2 in NPT, max 0.69 MPa (100 psi) |
| Memory | 250,000 datasets in up to 1,000 batches |
| Standards | ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, US Navy NSI 009-32 |
