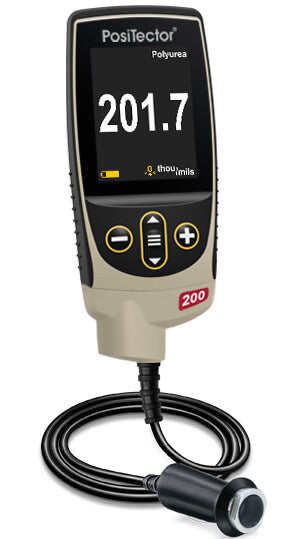

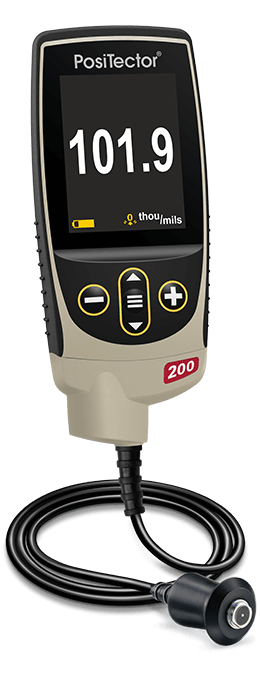

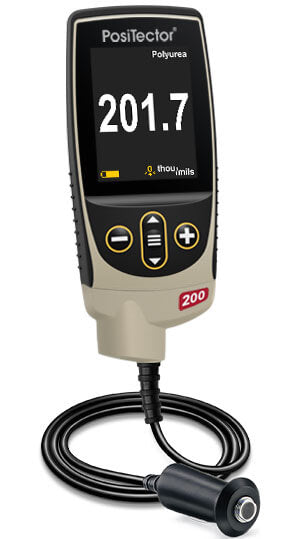

DeFelsko 200D3 | PosiTector 200 D Coating Thickness Gauge, Advanced | 50–7600 µm, Advanced Body
Part Number : 200D3
With the Advanced gage body, the DeFelsko 200D3 turns the PosiTector 200 D probe into a multi-layer ultrasonic gauge for thick, soft coatings such as polyurea, asphaltic neoprene and very thick polymers. Besides total thickness it can report up to three individual layers and show a graphics view of the echoes. The 200D3 suits QA labs and inspectors working to SSPC-PA 9.
Key features
- Range 50–7600 µm (2–300 mils), polymer coatings
- Accuracy ±(20 µm + 3% of reading)
- Minimum layer thickness 500 µm (20 mils)
- Up to 3 individual layer thicknesses plus graphics mode
- 250,000 readings in up to 1,000 batches; WiFi and Bluetooth
- Conforms to ASTM D6132 and ISO 2808
For pricing, please contact our experts.
