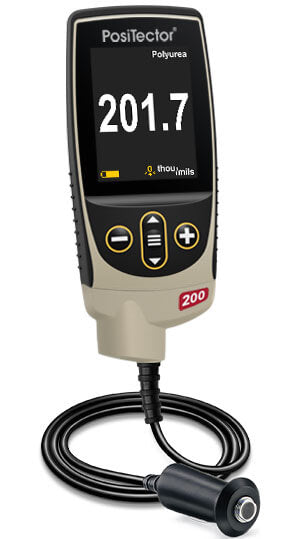

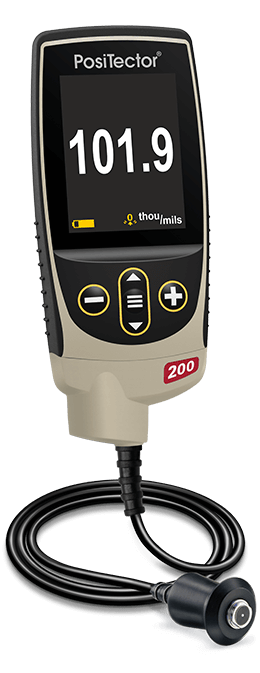

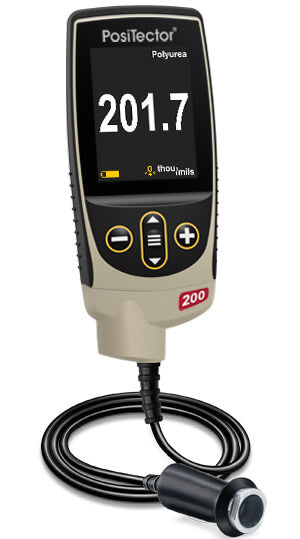

DeFelsko 200D1 | PosiTector 200 D Coating Thickness Gauge, Standard | 50–7600 µm, Standard Body
Part Number : 200D1
The DeFelsko 200D1 is a PosiTector 200 D ultrasonic coating thickness gauge on the Standard gage body. It is intended for thick, soft coatings such as polyurea, asphaltic neoprene and very thick polymers, measuring the total thickness of the coating system non-destructively. Applicators use the D probe for routine checks without cutting into the part.
Key features
- Range 50–7600 µm (2–300 mils), polymer coatings
- Accuracy ±(20 µm + 3% of reading)
- Minimum layer thickness 500 µm (20 mils)
- Measures total coating system thickness
- Standard body stores 1,000 readings per probe
- Conforms to ASTM D6132 and ISO 2808
For pricing, please contact our experts.
