Dakota Z-156-0008 | BT1-DL Bolt Tension Monitor | Handheld, 0.0001 mm Resolution
Part Number : Z-156-0008
The Dakota BT1-DL (MiniMax), part number Z-156-0008, is a handheld ultrasonic bolt tension monitor that reports fastener elongation, transit time in nanoseconds, load, stress and %strain. Resolution is switchable between 0.001 mm and 0.0001 mm, and the pulse-echo range runs from 25.4 to 25,400 mm.

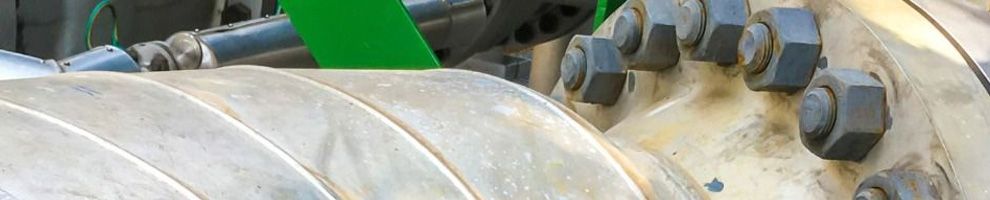

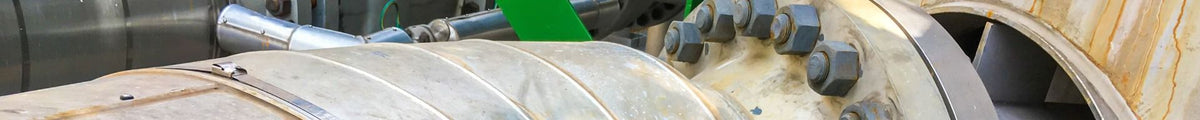

Through its USB interface and an optional shut-off accessory, the gauge can be set to stop a tightening process once the required load is reached. Listed applications include wind turbines, automotive frames, theme parks and bridge structures.
Key features
- 1/8 VGA greyscale display (240 x 160 pixels)
- Square wave pulser selectable at 100, 150 or 200 V
- Temperature compensation with a 5 pin LEMO 1 temperature sensor input
- 4GB memory with sequential and grid batching
- Hi/Lo alarm limits with LEDs and beeper
- Runs on 3 x AA batteries or via USB
For pricing, please contact our experts.
