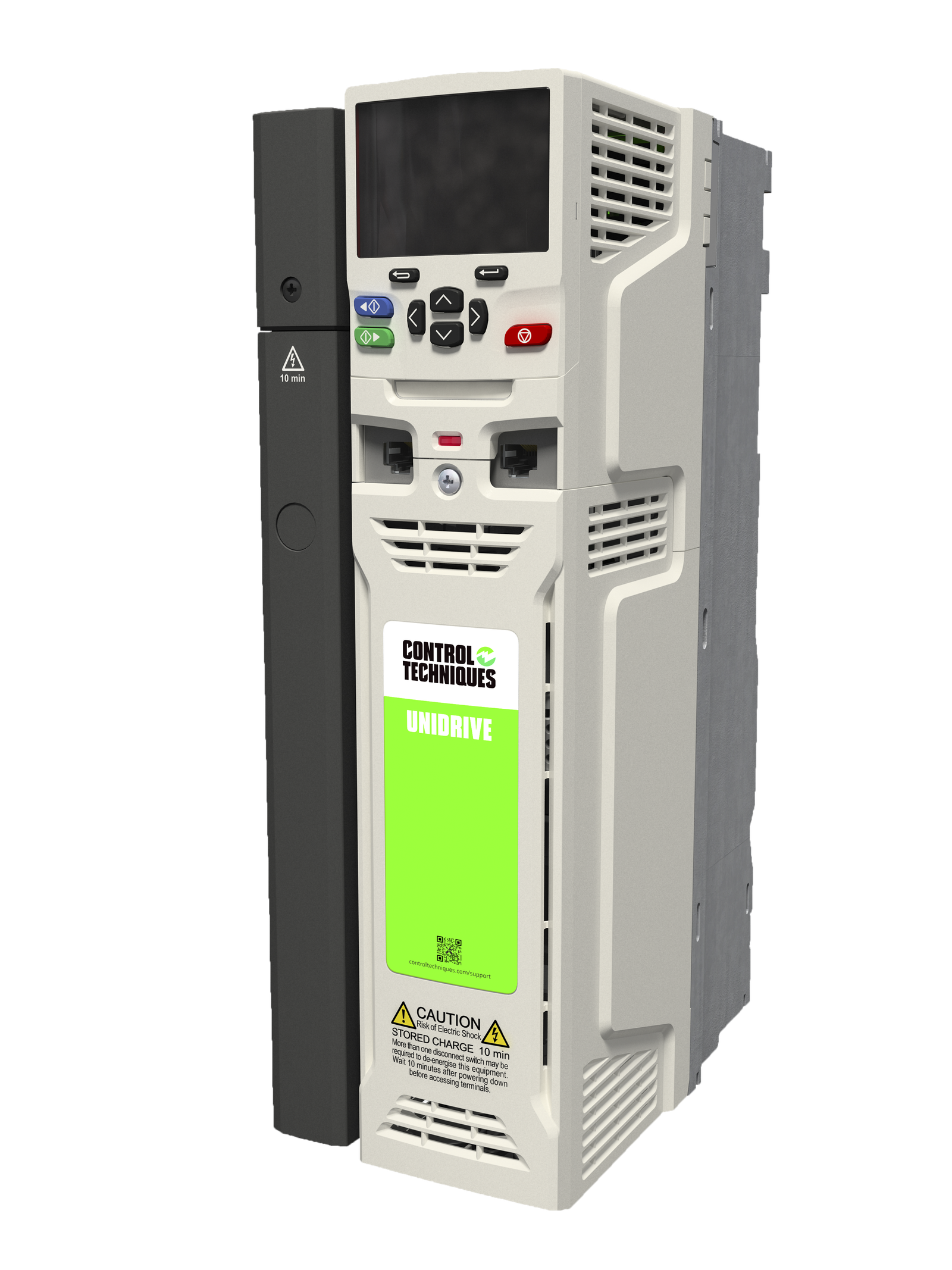

Control Techniques M000-12407200TU0100AB100 | High Power Modular Drive | 500 kW / 700 hp, 903 A, Frame 12
The Control Techniques M000-12407200TU0100AB100 is a high-power modular drive module rated at 500 kW / 700 HP in Frame 12. It provides up to 903 A maximum continuous output current and can be paralleled with additional modules to build drive systems up to 2.8 MW / 4,200 HP.
Genuine Control Techniques stock · Free Saudi Arabia shipping
Part Number: M000-12407200TU0100AB100
Request a quote in under a minute — call +966 569 289 544.
Product Overview
The Control Techniques M000-12407200TU0100AB100 is designed for system integrators and panel builders developing high-power modular drive systems for large industrial motors. As a 500 kW / 700 HP Frame 12 power module, it provides a scalable building block for applications where multiple drive modules need to operate together as part of a larger system.
Individual modules can be connected in parallel to create systems with a combined capacity of up to 2.8 MW / 4,200 HP. This modular approach allows high-power drive systems to be configured around the requirements of the application while supporting permanent-magnet and asynchronous motors.
The module supports Active Front End and multi-pulse rectifier configurations and is compatible with several Control Techniques controllers, including Unidrive M700, M701, M702, M600, Pump Drive F600 and HVAC Drive H300.
The M000-12407200TU0100AB100 is a power module rather than a complete standalone drive. The appropriate controller, rectifier arrangement, panel design and parallel configuration must therefore be selected as part of the complete drive system.
Its 903 A maximum continuous output current makes it suitable for demanding high-power motor applications where scalable modular drive architecture is required.
Ready to specify the M000-12407200TU0100AB100? Contact General Tech Services LLC at +966 569 289 544.
Key Benefits
- 500 kW / 700 HP Frame 12 high-power modular drive module
- Maximum continuous output current of 903 A
- Supports parallel drive systems up to 2.8 MW / 4,200 HP
- Compatible with M700, M701, M702, M600, F600 and H300 controllers
- Supports Active Front End and multi-pulse rectifier configurations
- Suitable for permanent-magnet and asynchronous motors
- Modular architecture for scalable high-power drive systems
- Suitable for system integrators, panel builders and large industrial installations
Who This Product Is Best For
The Control Techniques M000-12407200TU0100AB100 is intended for system integrators, panel builders and industrial engineering teams developing high-power motor-drive systems.
It is suitable for applications involving large permanent-magnet or asynchronous motors where a modular architecture is required, including systems using Active Front End or multi-pulse rectifier configurations.
How to Specify & Commission It
- Confirm that the 500 kW / 700 HP module rating and 903 A maximum continuous output current meet the motor and system requirements.
- Select the appropriate compatible Control Techniques controller for the complete drive system.
- Determine whether the application requires an Active Front End, multi-pulse rectifier or parallel module configuration.
- Install the module in a suitably designed and ventilated panel or enclosure according to the manufacturer's installation requirements.
- Complete the electrical connections, controller configuration, motor setup and system commissioning before placing the equipment into service.
Frequently Asked Questions
What is the Control Techniques M000-12407200TU0100AB100?
It is a 500 kW / 700 HP Frame 12 high-power modular drive module designed for integration into larger Control Techniques modular drive systems.
Is the M000-12407200TU0100AB100 a complete standalone drive?
No. It is a power module designed to operate with compatible Control Techniques controllers, including the M700, M701, M702, M600, Pump Drive F600 and HVAC Drive H300.
What is the maximum continuous output current?
The module has a maximum continuous output current of 903 A.
How much power can a parallel modular system support?
Multiple modules can be connected in parallel for systems with a combined capacity of up to 2.8 MW / 4,200 HP.
What configurations does the M000-12407200TU0100AB100 support?
The modular drive architecture supports Active Front End and multi-pulse rectifier configurations, depending on the complete system design.
What motors can the modular drive system control?
The system is suitable for permanent-magnet and asynchronous motors.
Which Control Techniques controllers are compatible with this module?
Compatible controllers include Unidrive M700, M701, M702, M600, Pump Drive F600 and HVAC Drive H300.
Is genuine Control Techniques stock available in Saudi Arabia?
General Tech Services LLC supplies genuine Control Techniques products in Saudi Arabia. Contact +966 569 289 544 for current stock, pricing and delivery information.
