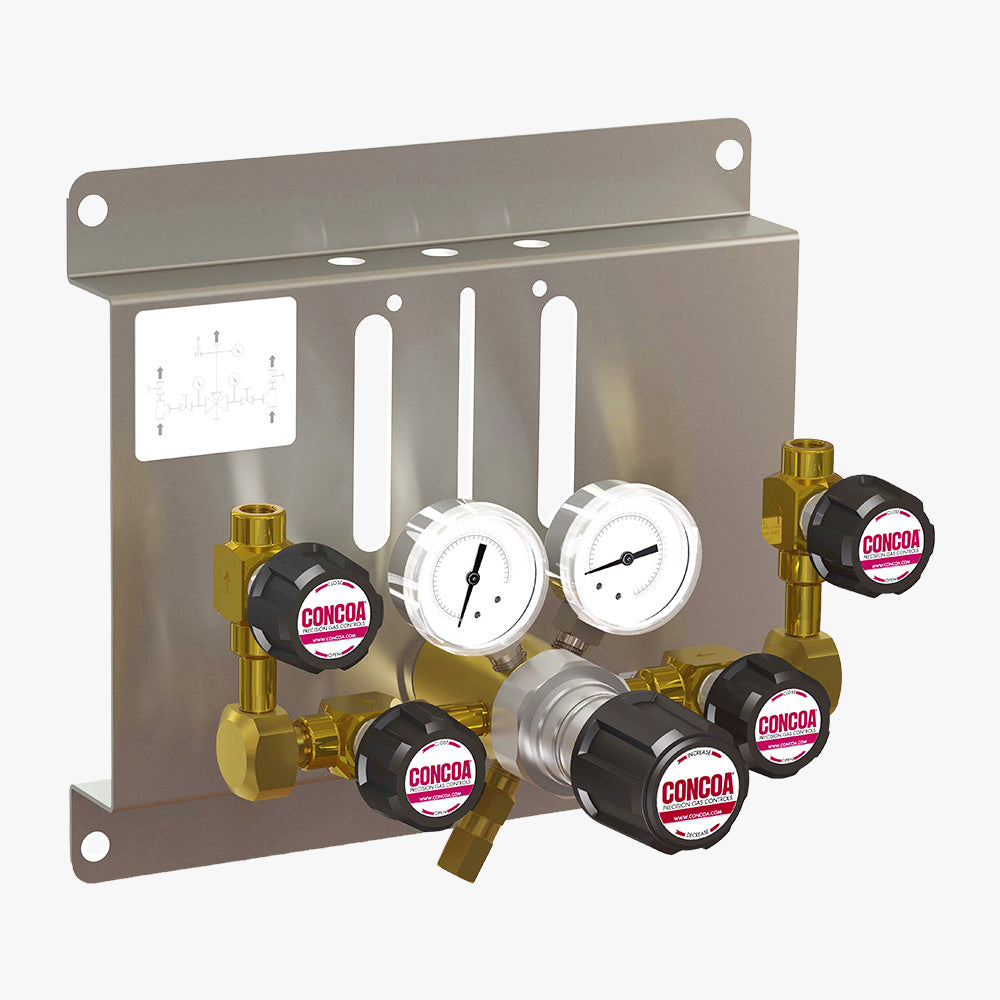

CONCOA P2 400 Series | Central Gas Manual Switchover Panel | Two Sources, 4500 PSIG Regulator Inlet
Part Number : CONCOA-P2-400-SERIES-CENTRAL-GAS-MANUAL-SWITCHOVER-PANEL
Fed from two sources such as single cylinders or bundles, the CONCOA P2 400 Series panel provides manual switchover with right and left inlets so gas supply can continue while one side is changed. Each panel is built to order: buyers select the regulator body (P2B brass barstock for research and ultra-high purity gases up to grade 6.0+, or P2S stainless steel for toxic, corrosive or reactive gases), the outlet pressure and orientation, and the purge arrangement.
Key features
- Full-flow process purge or low flow micro-purge choices
- Ultra-high purity 400 Series single stage regulator on a modular stainless panel
- Metal-to-metal seals; 1 x 10⁻⁸ scc/sec helium leak integrity
- Stainless steel convoluted diaphragm against inboard diffusion
- 4500 PSIG (310 BAR) regulator and 3500 PSIG (240 BAR) diaphragm valve inlet ratings
- Every panel helium leak checked and cleaned for oxygen service
For pricing, please contact our experts.
