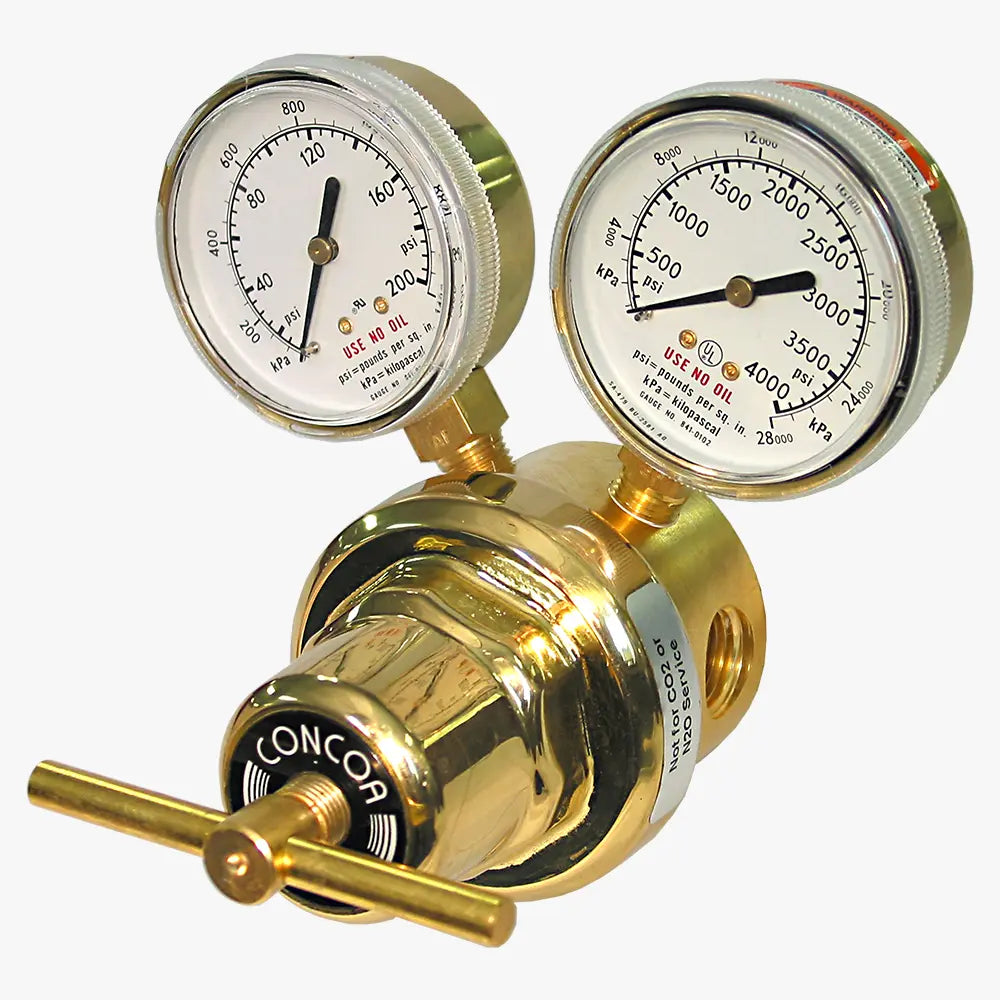

CONCOA 8066776-01-1 | 6700 Series Manifold Regulator | CO2/Inert Gas, 200 PSIG Delivery, LH Inlet
Part Number : 8066776-01-1
CONCOA 8066776-01-1 is a 6700 Series manifold regulator for carbon dioxide and inert gas with a LH inlet position. It delivers up to 200 PSIG (14 BAR) through an EPDM seat, with gauges scaled 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A diaphragm of chloroprene, plus 2 1/2 in (63 mm) brass gauges
- A Cv of 2.0 with a balanced stem seat that steadies output as inlet pressure decays
- An operating range of -40°F to 140°F (-40°C to 60°C) and 1/2 in FNPT inlet and outlet ports
- CRN OF11809.2 registration, plus 1/4 in FNPT gauge and relief ports
For pricing, please contact our experts.
