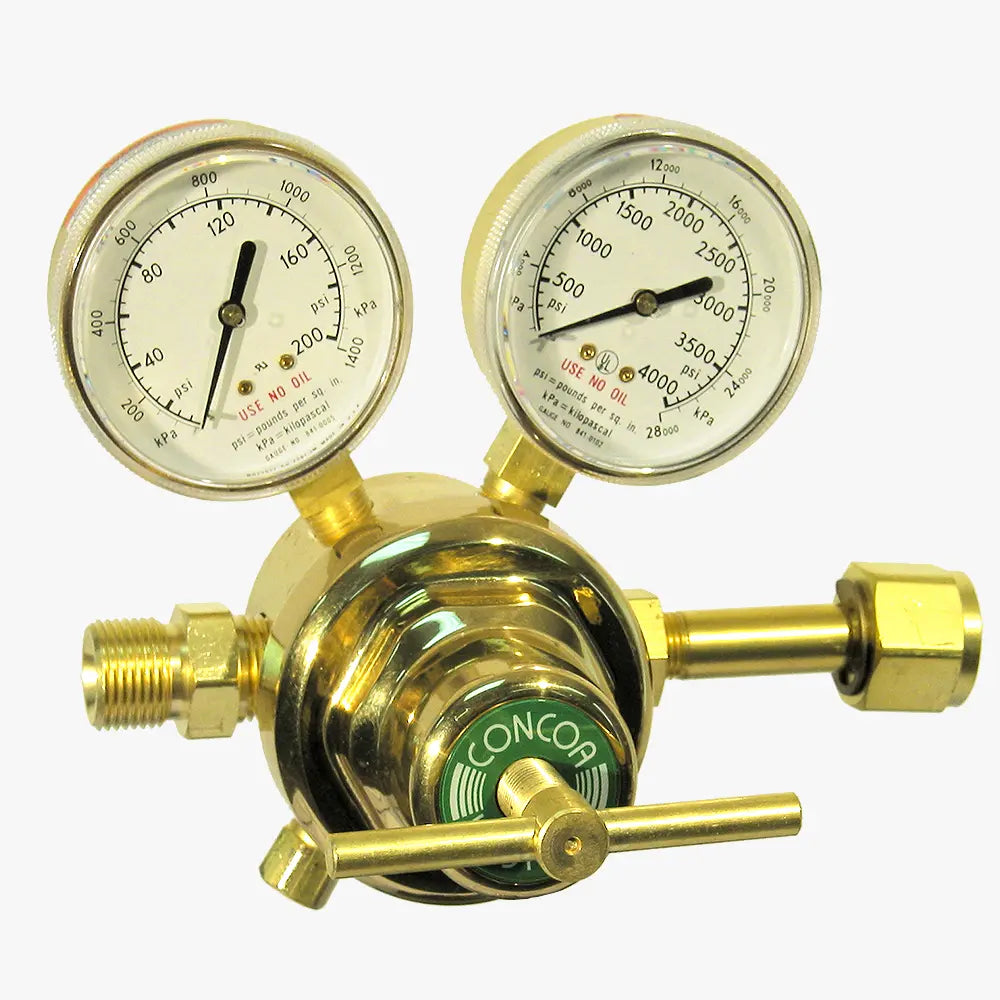

CONCOA 8066702-01-1 | 6700 Series Cylinder Regulator | Acetylene, CGA 300, 15 PSIG Delivery
Part Number : 8066702-01-1
CONCOA 8066702-01-1 is the acetylene heavy-duty cylinder regulator of the 6700 Series Cylinder Regulator line, fitted with a CGA 300 cylinder inlet and a 7/8 in -14 (C) LH Ext outlet. It supplies up to 15 PSIG (1 BAR) downstream and uses a chloroprene seat. Its acetylene gauges are scaled 0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa.
Key features
- A balanced stem seat that limits static increment, plus 1/2 in seat and inlet ports for very high flow
- A 3000 PSIG (210 BAR) maximum inlet rating without peripherals and a brass barstock body
- A heavy forged brass bonnet with a 40-micron 316L stainless steel filter
- A chloroprene diaphragm, plus 2 1/2 in (63 mm) brass gauges
For pricing, please contact our experts.
