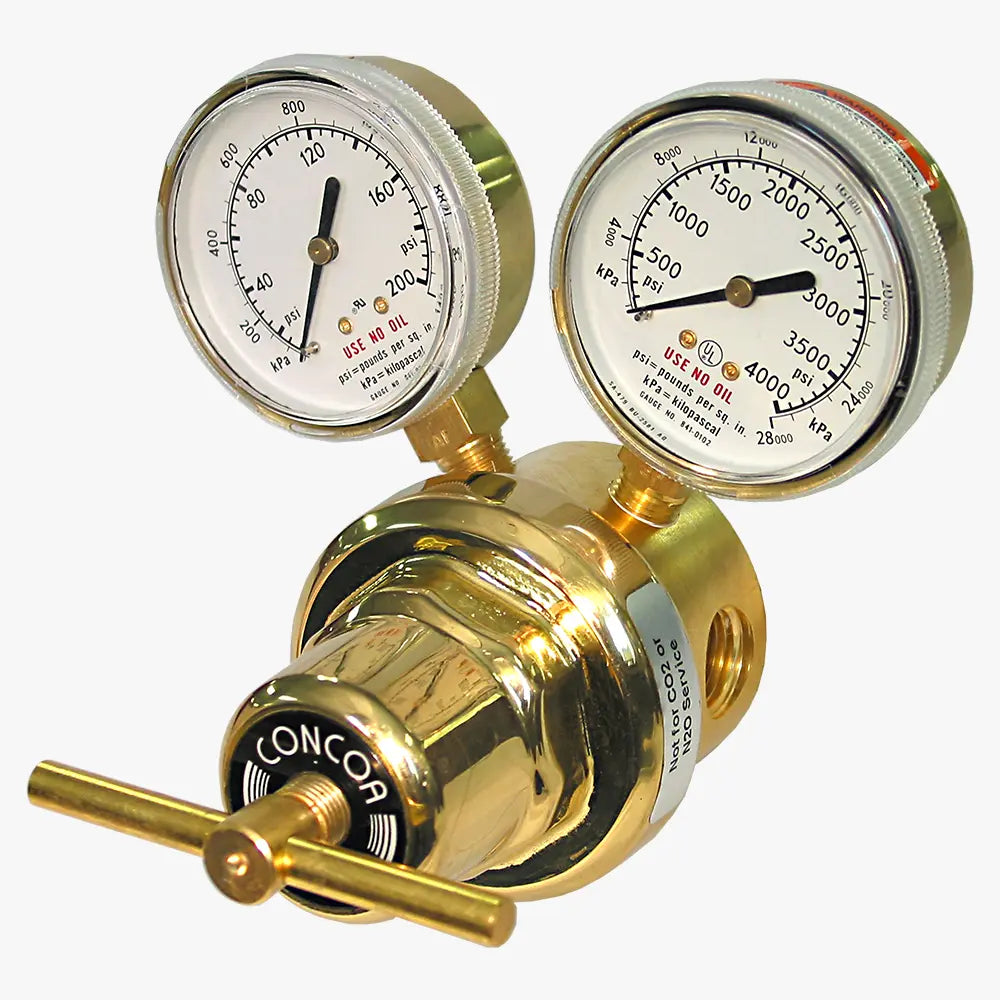

CONCOA 8066700-01-1 | 6700 Series Manifold Regulator | Acetylene, 15 PSIG Delivery, RH Inlet
Part Number : 8066700-01-1
CONCOA 8066700-01-1 is a 6700 Series manifold regulator for acetylene with a RH inlet position. It delivers up to 15 PSIG (1 BAR) through a chloroprene seat, with gauges scaled 0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa.
Key features
- A balanced stem seat that steadies output as inlet pressure decays, plus 1/2 in FNPT inlet and outlet ports
- 1/4 in FNPT gauge and relief ports and a 3000 PSIG (210 BAR) maximum inlet rating without peripherals
- A brass barstock body with a rugged forged brass bonnet
- A 40-micron 316L stainless steel filter, plus a chloroprene diaphragm
