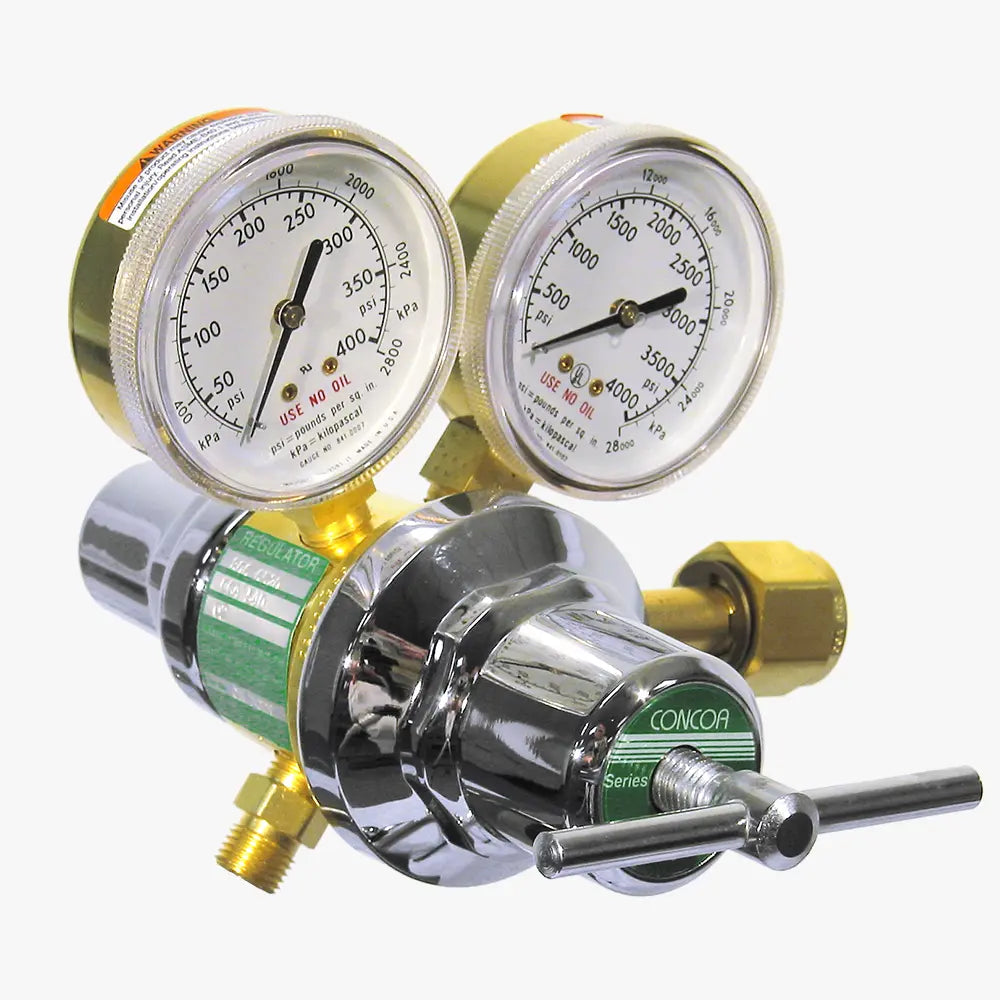

CONCOA 8066523-01-1 | 6520 Series Two Stage Cylinder Regulator | Argon/Nitrogen/Helium, CGA 580, 200 PSIG
Part Number : 8066523-01-1
The CONCOA 8066523-01-1 two stage regulator is built for argon, nitrogen and helium cylinders, with a CGA 580 inlet and 5/8 in -18 (B) RH Int outlet. With a PTFE second-stage seat, this model accepts up to 3000 PSIG (210 BAR) at the inlet and supplies up to 200 PSIG (14 BAR) downstream. Gauges fitted to 8066523-01-1 read 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A PTFE first-stage seat with a chrome-plated, die-cast zinc bonnet
- A forged brass body, plus two-stage pressure reduction
- A stainless steel diaphragm and a 25-micron sintered bronze filter
- A CAPSULE® seat design for easy maintenance with medium-large seat displacement for good flow capacity
For pricing, please contact our experts.
