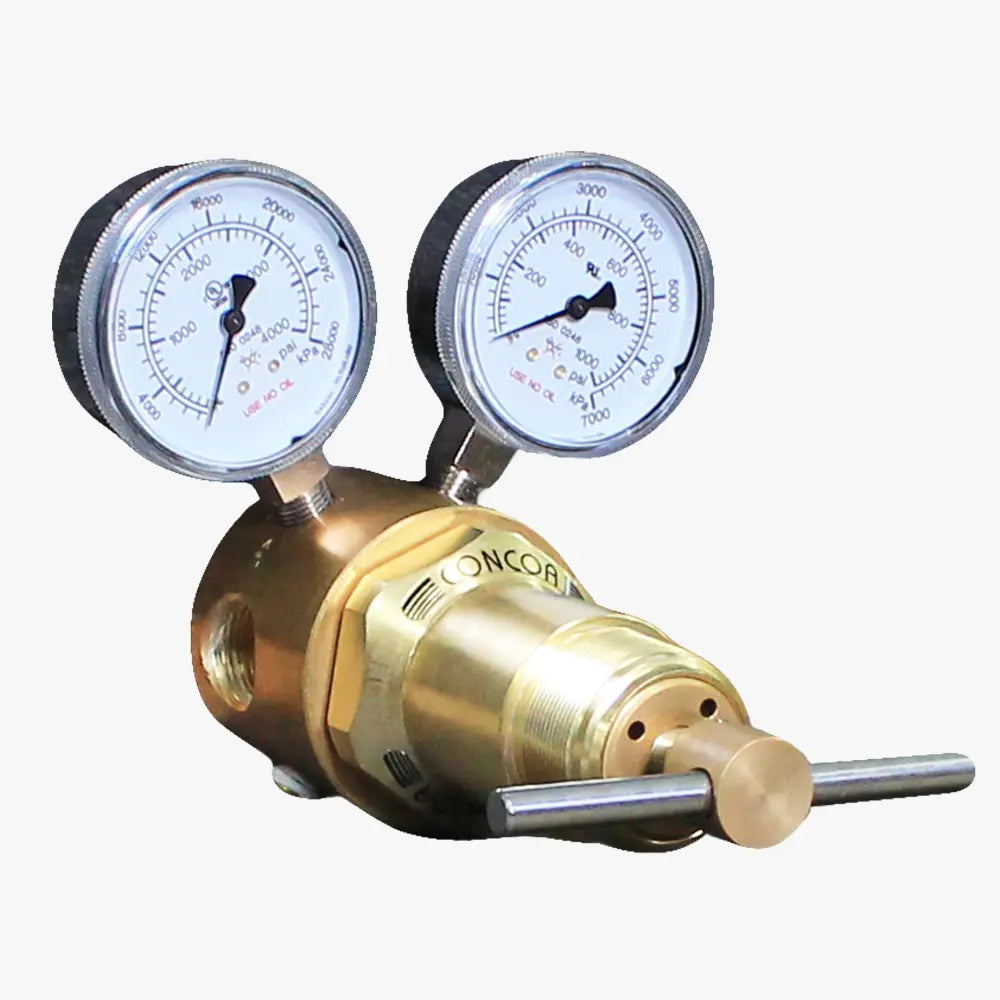

CONCOA 67B Series | Pressure Regulator | Brass, Up to 750 PSIG Delivery, 24,000 SCFH
Part Number : CONCOA-67B-SERIES-REGULATOR
The CONCOA 67B Series provides primary pressure control in systems that need delivery pressures up to 750 PSIG and flow rates up to 24,000 SCFH, and it is aimed at laser gas supply from any mode of supply. It is configured to order rather than sold under one part number: the delivery pressure option, an FKM or EPDM seat, and 1/2 in or 3/4 in FNPT primary ports are specified when ordering.
Key features
- Low static design allows use with liquid or high pressure cylinders
- Balanced stem seat removes fluctuation caused by decaying inlet pressure
- Front and rear panel mounting for flexible installation
- Machined brass forging body and bonnet with brass barstock dynamic cartridge
- 40-micron 316L stainless steel internal filter
- 3000 PSIG (210 BAR) maximum inlet, Cv 2.3, cleaned for oxygen service
For pricing, please contact our experts.
