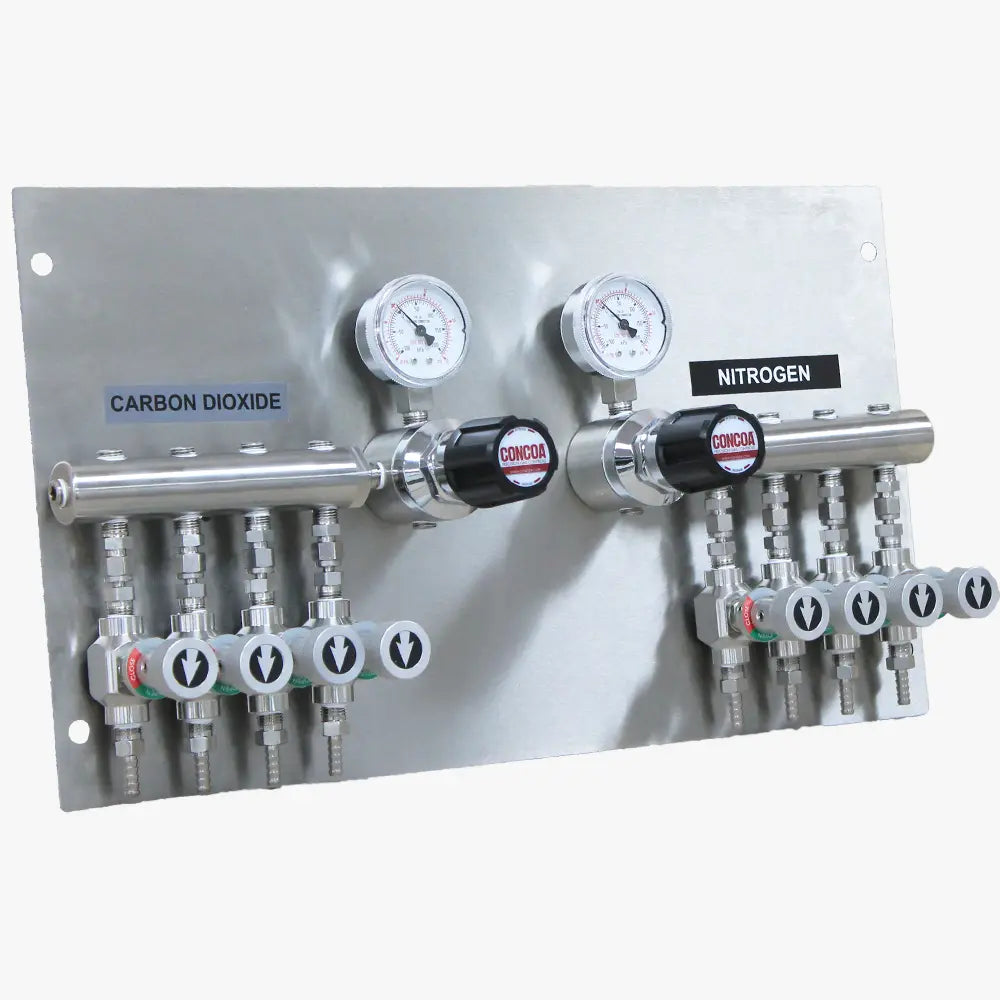

CONCOA 55 Series Point-of-Use Panel | Point-of-Use Panel | 3000 PSIG Inlet, 55C/55S
Part Number : CONCOA-55-SERIES-POINT-OF-USE-PANEL
The CONCOA 55 Series point-of-use panel provides final line pressure control for one or two gases, with individual isolation for up to four streams of each. In incubator work it can feed carbon dioxide and nitrogen to four incubators or two dual-stack units from one panel. High-purity single-stage regulators handle full cylinder pressure and stay stable through upstream fluctuations.
Panels are configured to order: stainless steel (55S) or chrome-plated brass (55C), front or rear inlet entry, left or right-hand regulators and an optional pipe-away relief valve are chosen when ordering.
Key features
- Modular, custom-configured design
- Dual surface stainless steel diaphragm for accuracy without inboard diffusion
- High purity diaphragm outlet valve for flow control and shut-off
- 14-gauge 304 stainless steel panel
- 3000 PSIG (210 BAR) max inlet; 1/4 in FNPT; helium leak integrity 1 x 10⁻⁸ scc/sec
For pricing, please contact our experts.
