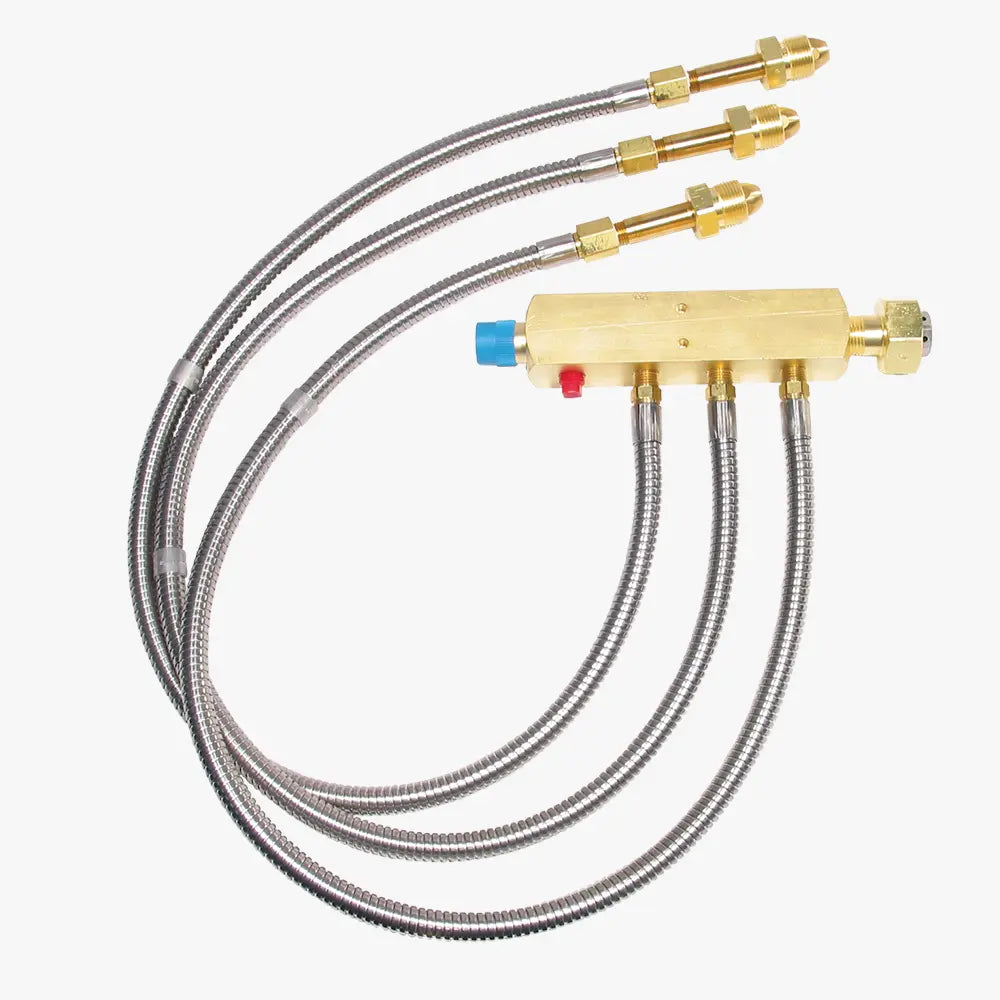

CONCOA 52L Series | Gas MicroManifold | 3000 PSIG Inlet (4500 PSIG Optional), Brass Body
Part Number : CONCOA-52L-SERIES-GAS-MICROMANIFOLD
The CONCOA 52L Series Gas MicroManifold is a compact, non-corrosive gas distribution manifold that carries gas from liquid cylinders or high-pressure cylinders to a CONCOA pressure control device. It is configured to order: there is no single part number, and the inlet pressure rating and cylinder hoses are chosen when the ordering code is built. CONCOA names a standard 3000 PSIG (210 BAR) inlet rating with 4500 PSIG (310 BAR) as an option, and 316L stainless steel hoses with a Monel inner core available for oxygen service. It suits many CONCOA 500 and 600 Series switchovers.
Key features
- Safety disk guards the manifold against overpressure.
- Modular build allows simple expansion in the field.
- Several cylinder hose options cover a wide range of gases.
- Brass barstock body with four 1/4 in FNPT inlets and one 1/2 in FNPT inlet.
- 1/2 in MNPT outlet.
For pricing, please contact our experts.
