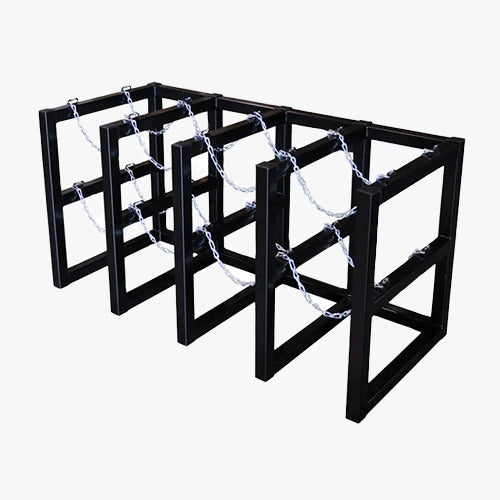

CONCOA 5185014 | Cylinder Barricade Rack | 4 Cylinders, 1 Wide x 4 Deep
With room for four cylinders (1 wide x 4 deep), CONCOA barricade rack 5185014 has overall dimensions of 16 in x 50 in x 30 in (406mm x 1270mm x 762mm).
- An exterior-grade powder-coated finish, plus tops ground smooth and capped with high-density polyethylene
- Dual-level welded steel chains secured with clasps, plus free-standing use or floor mounting through predrilled holes
- Suitability for indoor or outdoor bulk storage, plus bays for cylinders 4 in to 12 in (102 mm to 305 mm) in diameter
- A 12 in (305 mm) cylinder bay width, plus square steel structural tubing seam-welded at every junction
- Specifications
- Downloads
| Part Number | 5185014 |
| Brand | CONCOA |
| Series | Cylinder Barricade Racks |
| Capacity | 4 cylinders |
| Layout | 1 wide x 4 deep |
| Dimensions (W x D x H) | 16 in x 50 in x 30 in (406mm x 1270mm x 762mm) |
| Stand material | Powder-coated steel |
| Cylinder diameter capacity | 4 in to 12 in (102 mm to 305 mm) |
| Cylinder bay width | 12 in (305 mm) |
| Mount type | Floor |
| Chains | Heavy-duty steel |
