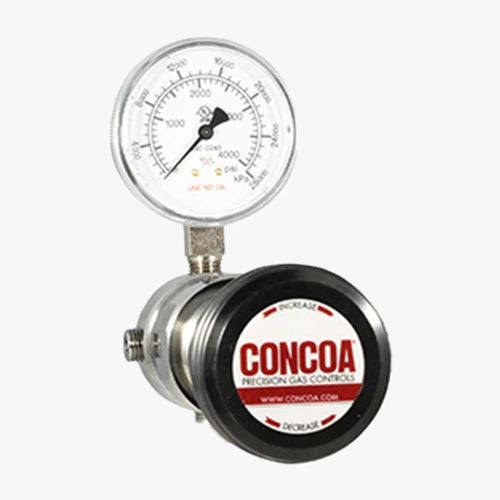

CONCOA 492 Series | Four-Port Piston Line Regulator | Up to 6000 PSIG, Chrome-Plated Brass
Part Number : CONCOA-492-SERIES-LINE-REGULATOR
The CONCOA 492 Series four-port line regulator provides secondary pressure regulation or point-of-use control of non-corrosive high purity gases at inlet pressures up to 6000 PSIG (415 BAR). A piston assembly replaces the usual diaphragm to keep control safe at very high inlet pressure.
It is sold configured to order. Bare-body inlet ratings of 3000 PSIG (210 BAR), 5500 PSIG (380 BAR) or 6000 PSIG (415 BAR) are listed, and outlet range, gauges, connections and factory-installed options are chosen when ordering.
- Large piston pressure sensor controls up to 6000 PSIG (415 BAR)
- CAPSULE seat with integral 360° filtration
- Front or rear panel mounting
- Field-adjustable pressure limit protects downstream equipment
- Low wetted surface area reduces purge needs
- PEEK seat for 6000 PSIG inlet; PCTFE for lower ratings
For pricing, please contact our experts.
