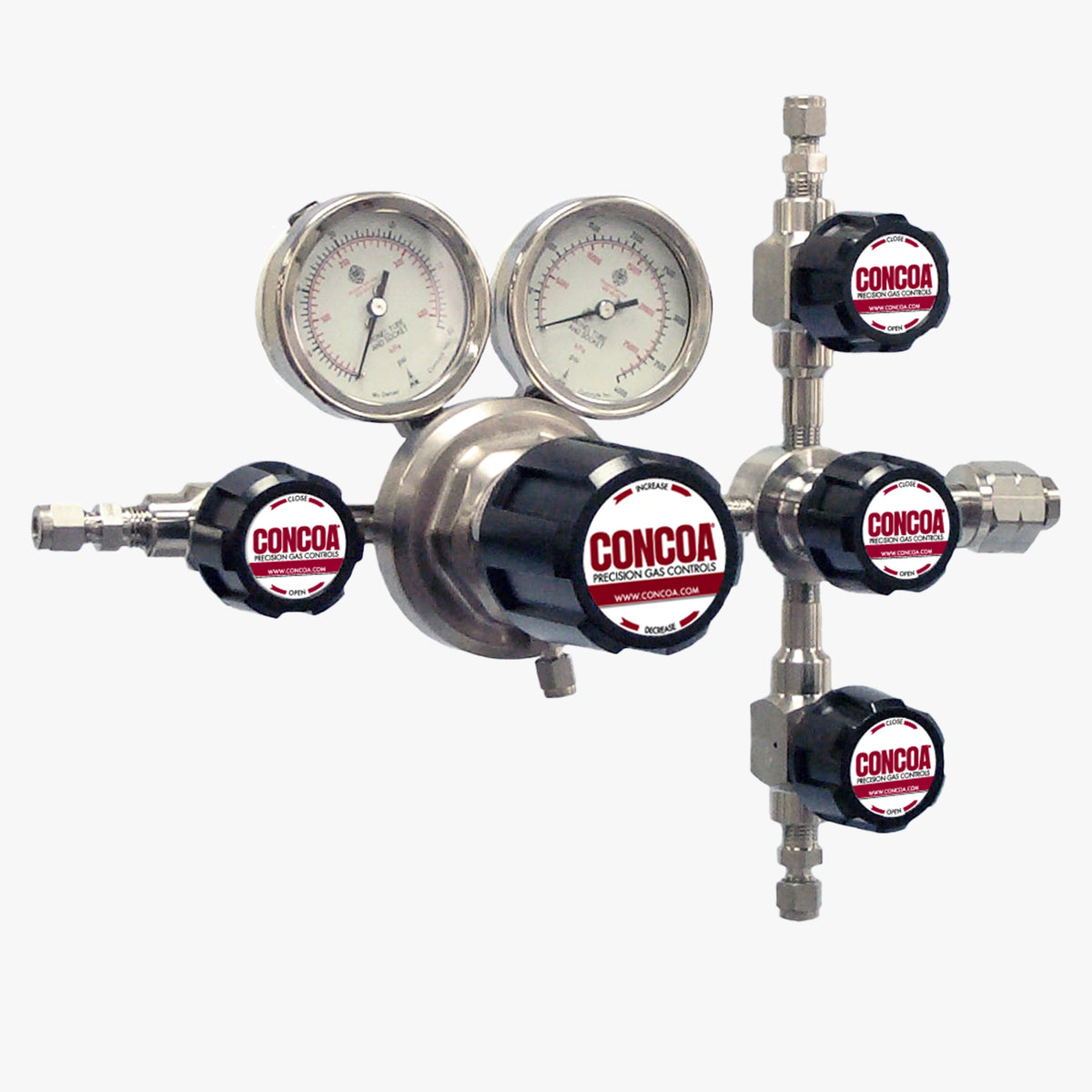

CONCOA 455 Series | Corrosive Gas Regulator | Dursan Treated Internals, Monel Gauges
Part Number : CONCOA-455-SERIES-REGULATOR
The CONCOA 455 Series provides primary pressure control of highly corrosive gases such as chlorides, sulfides and other acid-forming gases. Its capsule and diaphragm are Dursan® treated, an amorphous silicon oxide finish with more corrosion resistance than 316L stainless steel. CONCOA strongly advises a deep purge assembly to keep moisture out of the gas stream. The 455 Series has no single part number: outlet pressure range, gauges, connections and options are chosen when the ordering code is built. Choices named by CONCOA include a passivated build with stainless steel CAPSULE® and diaphragm for fluorine service, or a non-passivated Dursan build.
- Captured vent against exposure if the diaphragm fails
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: Electroless nickel-plated forged brass; bonnet: electroless nickel-plated forged brass
- Diaphragm: 316L stainless steel (passivated) or Dursan (non-passivated); seat: PTFE
- Filter: Patented 10-micron 316 stainless steel mesh (passivated); 10-micron Dursan mesh (non-passivated)
- Helium leak integrity 1 x 10⁻⁸ scc/sec; Cv 0.2
For pricing, please contact our experts.
