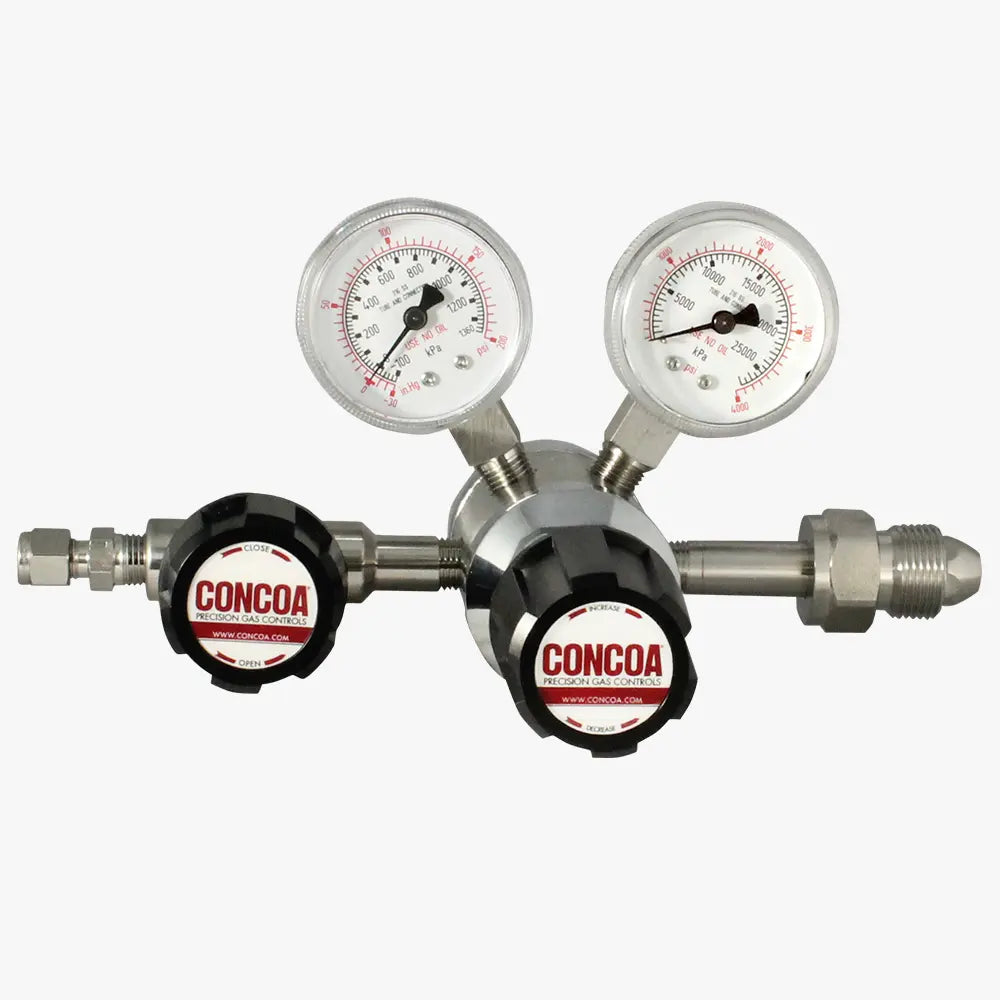

CONCOA 332 Series | Two Stage Stainless Steel Regulator | 316L Stainless Body, Grade 5.5
Part Number : CONCOA-332-SERIES-REGULATOR
The CONCOA 332 Series is a two stage regulator with a 316L stainless steel body for primary control of high purity inert gases (to grade 5.5), including mildly reactive gases but not toxic or highly corrosive ones. Typical users include university classrooms, laboratories, chemical research and pharmaceutical manufacturing. It is configured to order, so the delivery range, gauges, inlet and outlet connections and any options are selected at the time of ordering. Choices named by CONCOA include a 4500 PSIG (310 BAR) inlet rating and other factory-installed options.
- CAPSULE® seats with 360° filtration in both stages
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR); 4500 PSIG (310 BAR) optional
- Body: 316L stainless steel barstock; bonnet: chrome-plated, die-cast zinc
- Diaphragm: 316L stainless steel; seat: PCTFE (first stage); PTFE (second stage)
- Filter: Patented 10-micron 316 stainless steel mesh
- Helium leak integrity 1 x 10⁻⁸ scc/sec; Cv 0.1
- Ports (bare body): 1/4 in FNPT
For pricing, please contact our experts.
