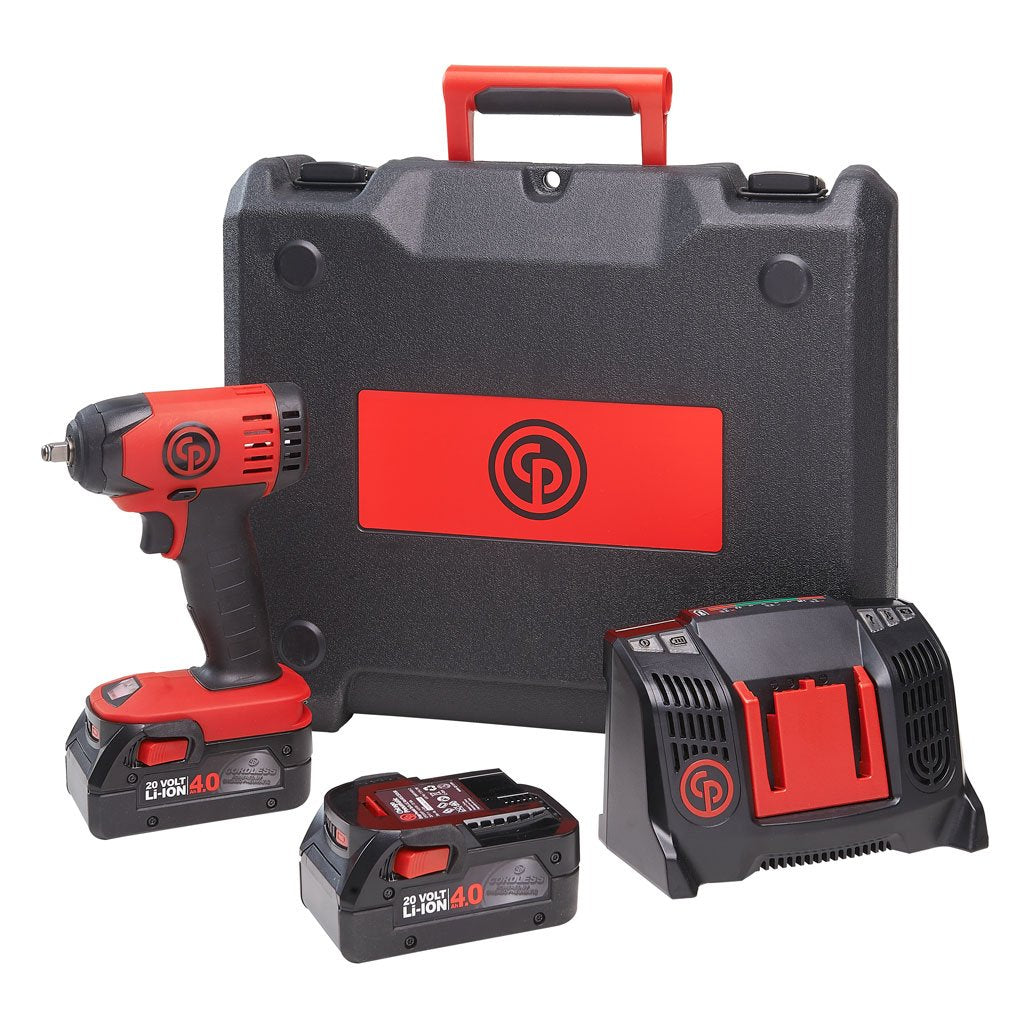

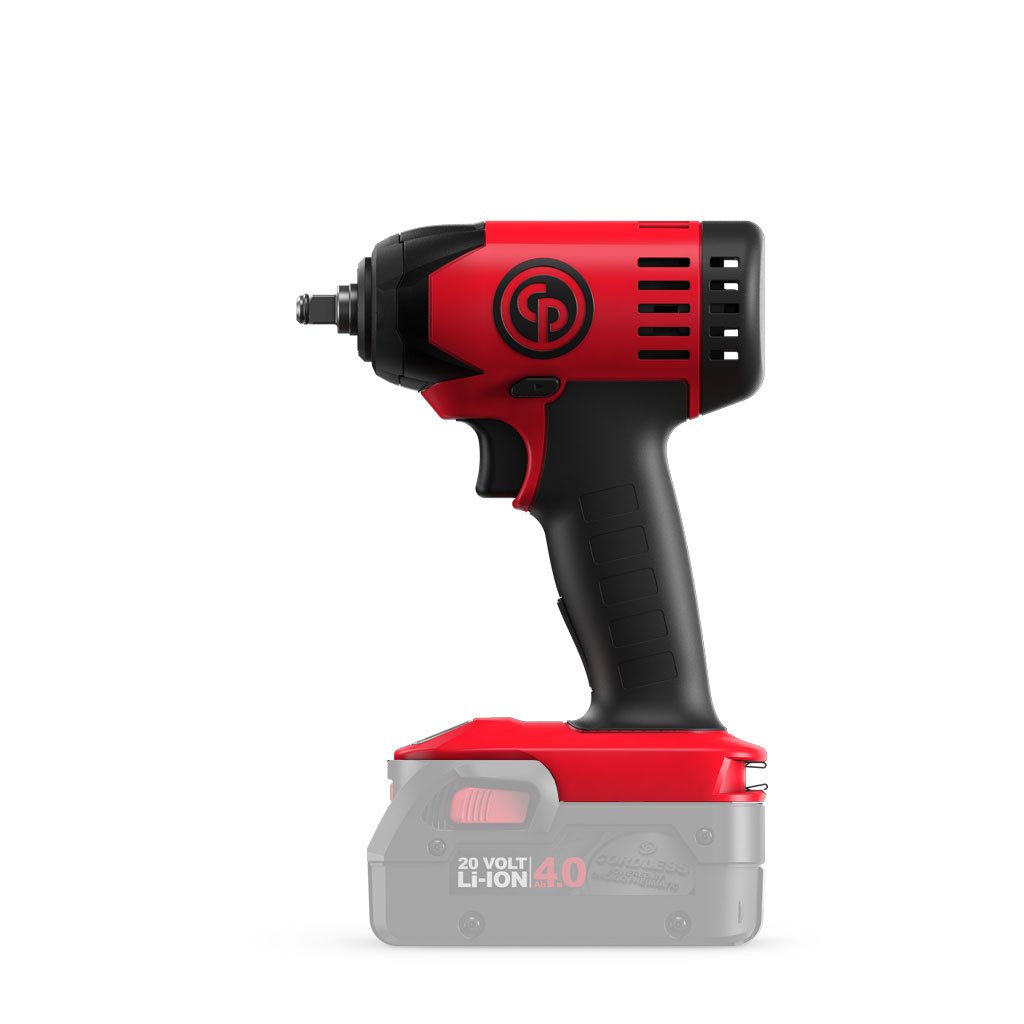

Chicago Pneumatic CP8828 | Cordless Impact Wrench | 3/8 in square, 20 V, 40–174 Nm
The Chicago Pneumatic CP8828 is a 3/8 in square drive cordless impact wrench, covering a 40–174 Nm torque range on a 4 Ah 20 V lithium-ion battery.
- Strong power-to-weight ratio; 3,100 blows per minute
- Charge gauge; 153 mm overall length
- Rubber battery dampeners absorb impacts and shocks; 1.85 kg net weight
- Aluminium clutch housing; sound pressure 96 dB(A)
- LED lighting and single-hand forward/reverse operation; vibration <2.5 m/s²
- Up to 205 Nm in reverse and 2,400 rpm free speed, 3,100 blows per minute
- Specifications
- Features
| Part Number | CP8828 |
| Brand | Chicago Pneumatic |
| Product Number | 8941088289 |
| Battery | 4 Ah 20 V lithium-ion |
| Drive | 3/8 in square |
| Torque range | 40–174 Nm |
| Max torque (reverse) | 205 Nm |
| Free speed | 2,400 rpm |
| Blows per minute | 3,100 |
| Length | 153 mm |
| Net weight | 1.85 kg |
| Weight without battery | 1.08 kg |
| Vibration | <2.5 m/s² |
| Sound pressure | 96 dB(A) |
- 3/8” anvil with ring retainer
- Max. torque: 150 ft.lbs/205 Nm in reverse
- 2.38 lb/1.08 kg
- 6.1 in/152 mm length
- Bare tool
- 20-Volt CP20XP Lithium-ion 4Ah battery (sold separately)
Related Products

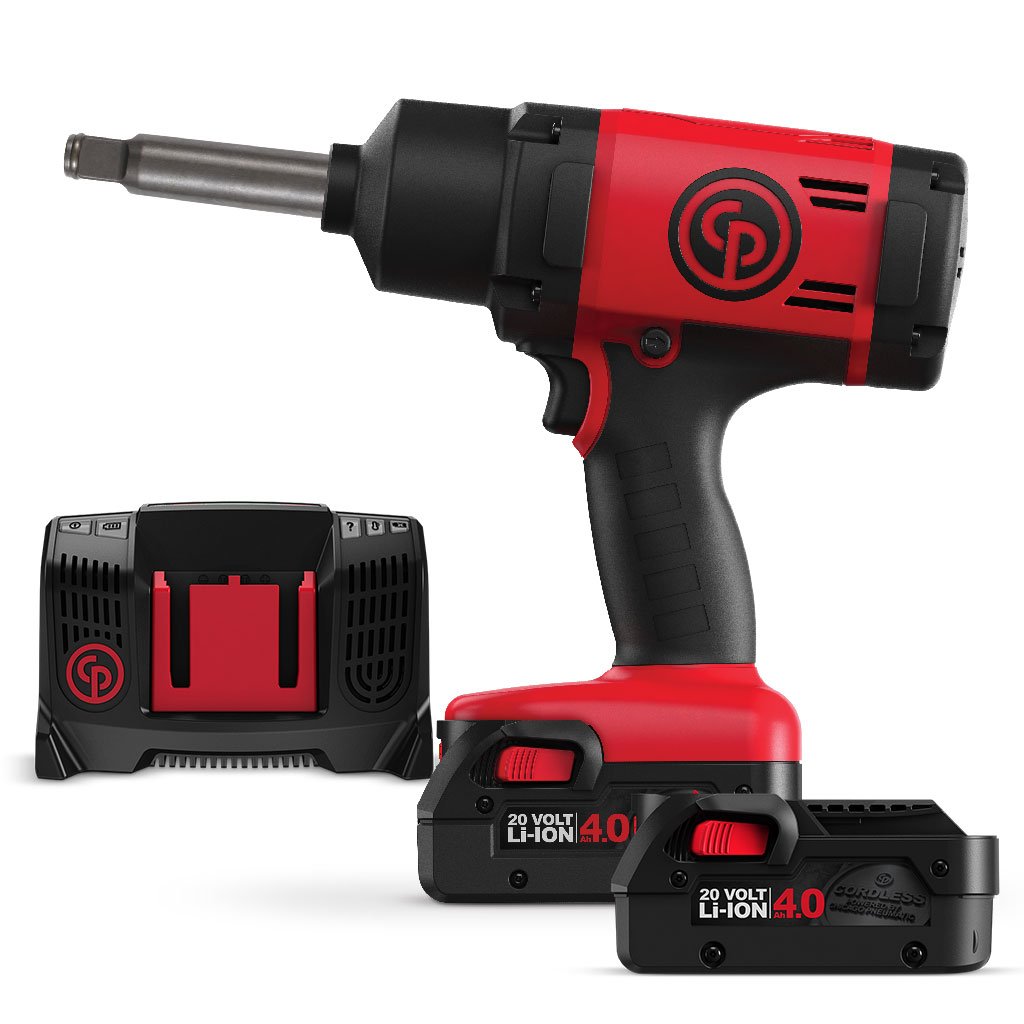

Chicago Pneumatic CP8848-2 Pack US | Cordless Impact Wrench | 1/2 in square, 20 V, 68–950 Nm
Chicago Pneumatic CP8848-2 Pack US | Cordless Impact Wrench | 1/2 in square, 20 V, 68–950 Nm

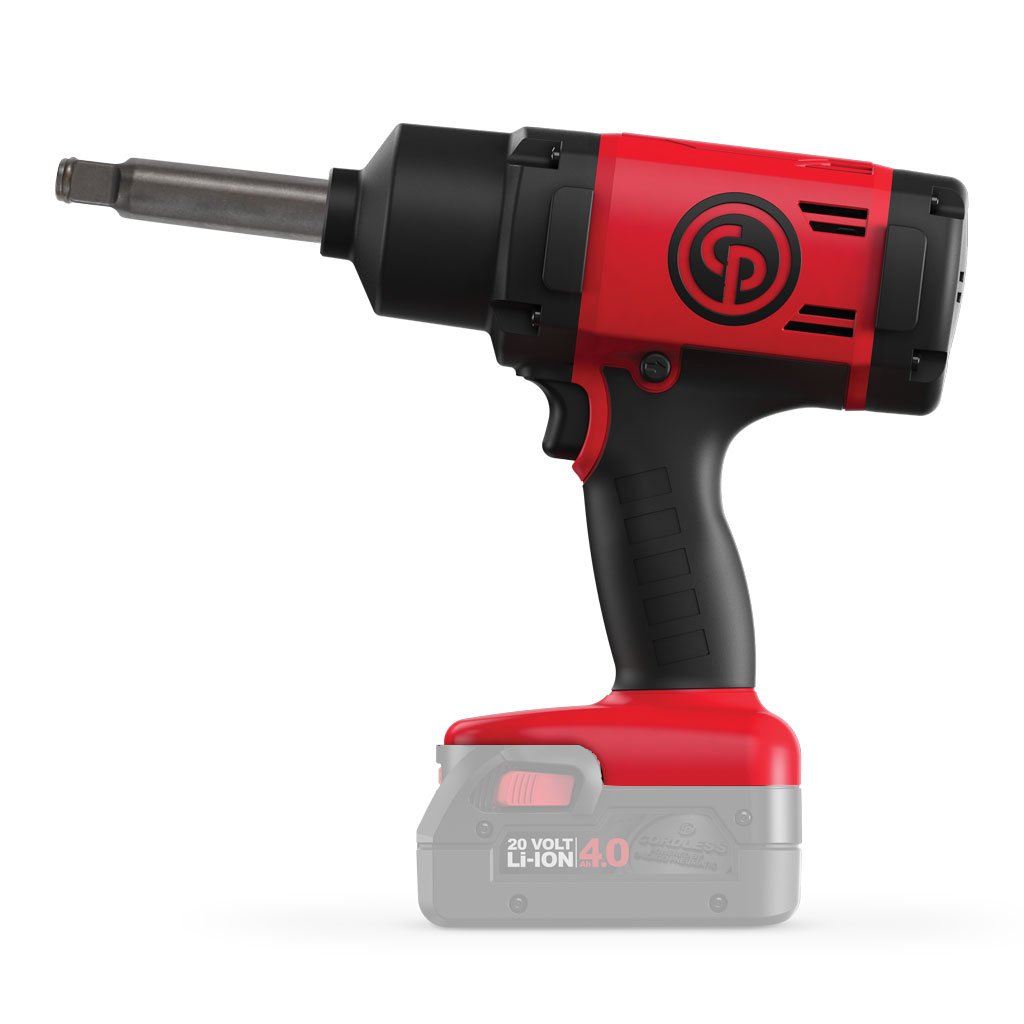

Chicago Pneumatic CP8848-2 | Cordless Impact Wrench | 1/2 in square, 20 V, 68–950 Nm
Chicago Pneumatic CP8848-2 | Cordless Impact Wrench | 1/2 in square, 20 V, 68–950 Nm
Rodcraft RC9077K6 8951000476 | Cordless Impact Wrench Kit | 1/2 in Drive, 1500 Nm, 2 x 6 Ah
Rodcraft RC9077K6 8951000476 | Cordless Impact Wrench Kit | 1/2 in Drive, 1500 Nm, 2 x 6 Ah

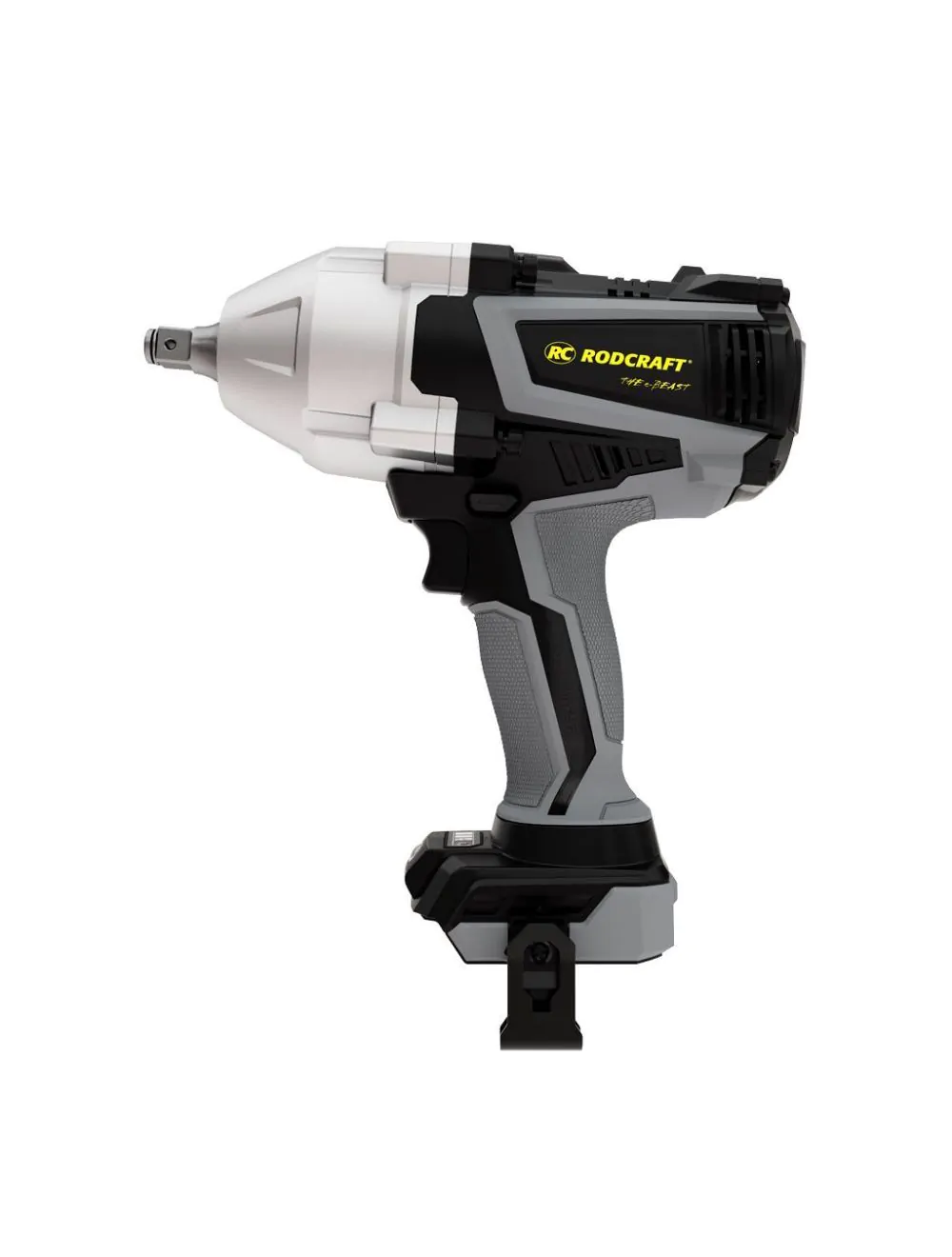

Rodcraft RC9077 8951000465 | Cordless Impact Wrench Bare Tool | 1/2 in Drive, 1500 Nm, No Battery
Rodcraft RC9077 8951000465 | Cordless Impact Wrench Bare Tool | 1/2 in Drive, 1500 Nm, No Battery
Rodcraft RC9077K4 8951000474 | Cordless Impact Wrench Kit | 1/2 in Drive, 1500 Nm, 2 x 4 Ah
Rodcraft RC9077K4 8951000474 | Cordless Impact Wrench Kit | 1/2 in Drive, 1500 Nm, 2 x 4 Ah

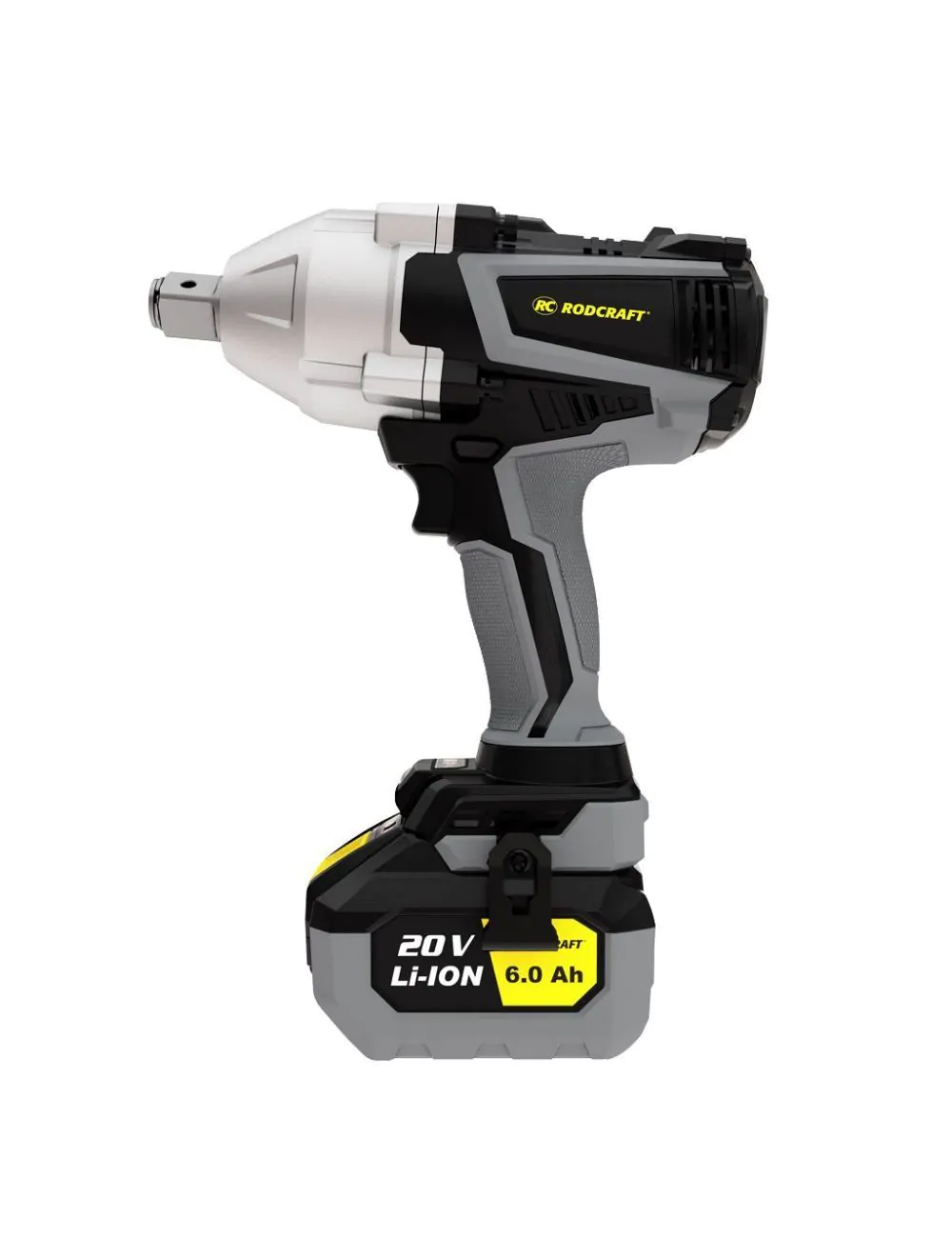

Rodcraft RC9087K6 8951000477 | 3/4 in Cordless Impact Wrench Kit | 3/4 in Square, 1500 Nm, 6 Ah
