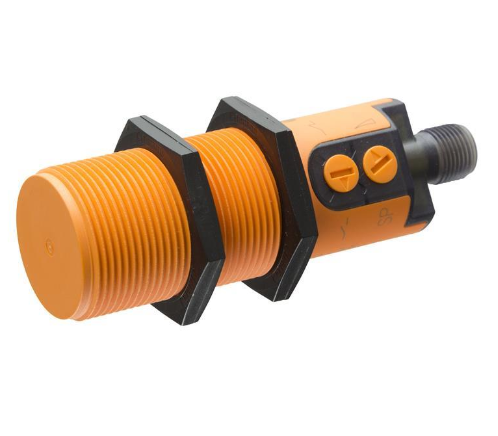

Capacitive sensor ifm electronic KI6000 - KI-3250NFPKG/PL/2P/US/IO
The capacitive sensor KI6000 - KI-3250NFPKG/PL/2P/US/IO from ifm electronic with an M30 x 1.5 plastic thread, has an operating voltage of 10-30 V DC. The output function can be easily changed from NO to NC via a selector switch. The operating distance of the capacitive sensor is 25 mm and can be adjusted between 0.5-40 mm with a non-flush installation. A unique 12-digit LED bar display serves as an adjustment aid for easy switch point adjustment which also helps when readjusting in case of deposits for example. The electrical connection of the capacitive sensor KI6000 - KI-3250NFPKG/PL/2P/US/IO is via an M12 connector. Thanks to the increased interference immunity and protection rating of IP65/IP67/IP69K the sensor can be used in virtually all applications. Using a PC the sensor can also be programmed via IO-Link, then advanced features such as timers or PNP/NPN switching are made available to the user.
