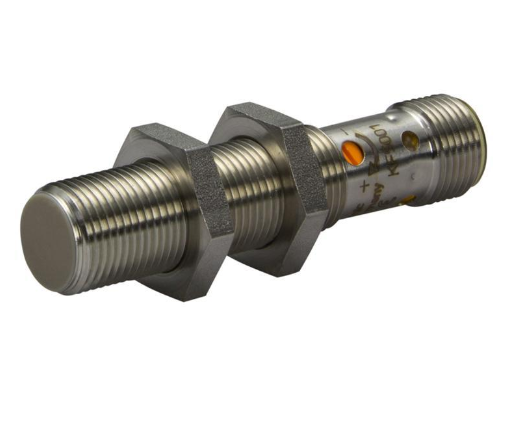

Capacitive sensor ifm electronic KF5001 - KFA3040BBPKG/NI/US
The capacitive sensor KF5001 - KFA3040BBPKG/NI/US from ifm with an M12 x 1 metal thread and an operating voltage of 10-36 V DC has a normally open contact as output signal. The sensing range is selectable from 1-6 mm with flush installation. The capacitive sensor KF5001 - KFA3040BBPKG/NI/US has an M12 plug-and socket connection. Due to the increased noise immunity and the protection rating IP65 detection of metals and almost all plastics, glass, ceramics, wood and paper is possible without any problems.
- Specifications
- Features
- Downloads
| Electrical design | PNP |
| Housing | Threaded type |
| Mounting | flush mountable |
| Operating voltage [V] | 10-36 DC V |
| Output function | normally open |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Sensing range [mm] | 4 mm |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 50 Hz |
- Compact and robust stainless steel housing
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status
- High noise immunity
- For position detection or level monitoring
