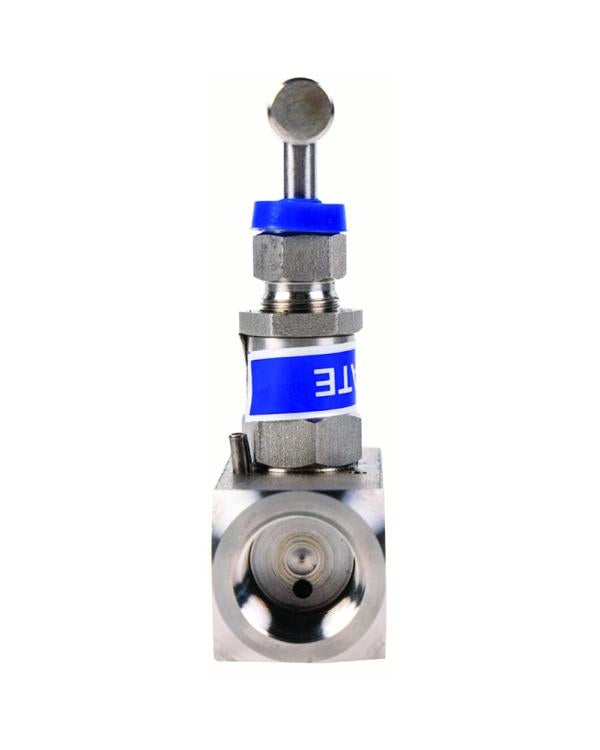

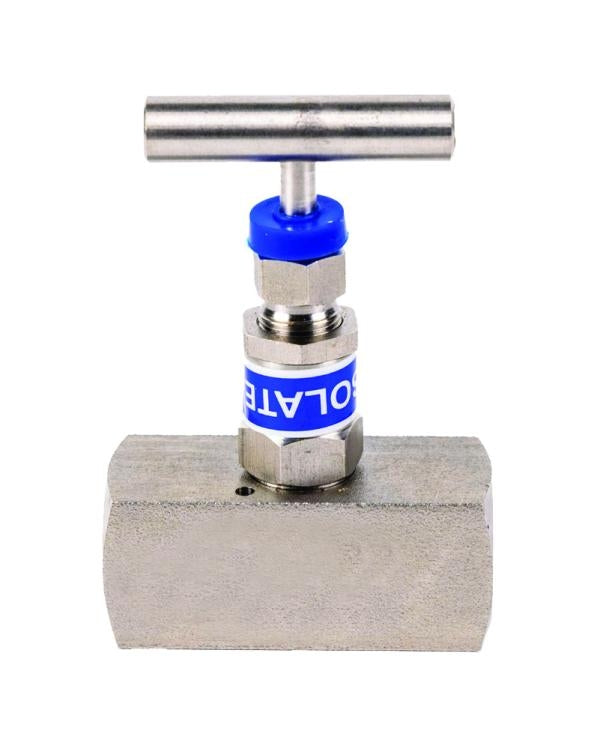

Brannan ANV040 | Stainless Steel Needle Valve | Soft Seat, Straight or 90°, 400 bar
Part Number : ANV040
Brannan ANV040 is a soft-seat needle valve for isolating pressure gauges on gas and liquid service in oil and gas, chemical, power generation and water applications. A Delrin soft needle tip gives complete shut-off or adjustable throttling, and back seating prevents stem blowout. The valve is rated to 400 bar and 100 °C and comes in straight or 90° angled bodies with 1/4, 3/8 or 1/2 in BSP, BSPT or NPT connections.
Key features
- Soft seat with Delrin needle tip
- Straight or 90° angle configuration
- Wetted parts in SS316, SS316L, Monel, Hastelloy C, carbon steel or SS304
- Male, female or socket weld connections
- PTFE or graphite stem packing
- NACE MR-0175 compliance optional
For pricing, please contact our experts.
