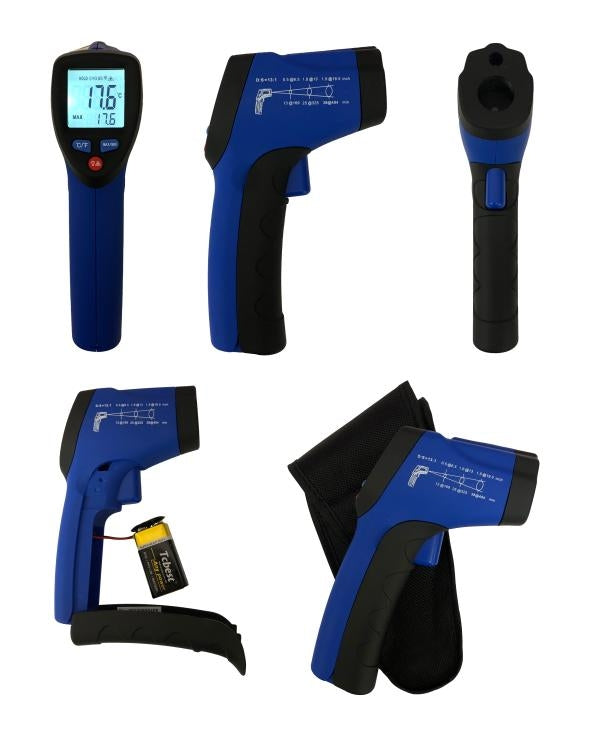

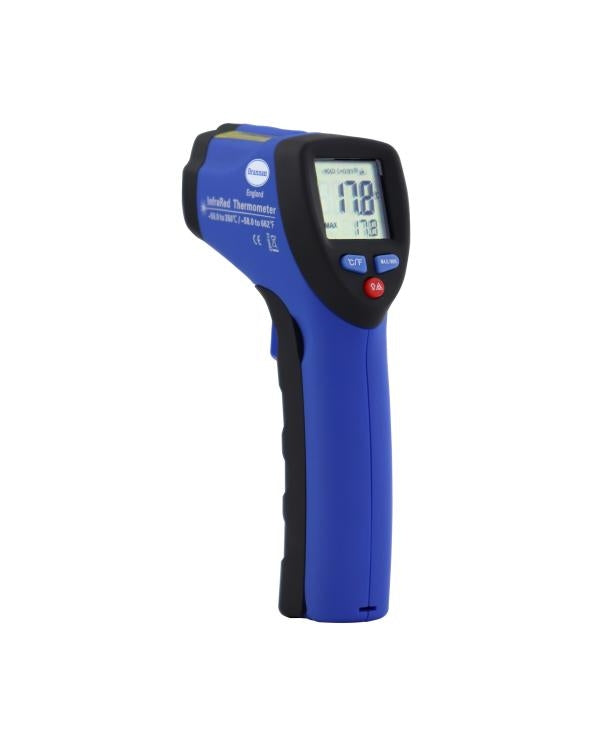

Brannan 38/701/0 | Standard Infrared Non-Contact Thermometer | -50 to +350 °C, 13:1
The Brannan 38/701/0 is a hand-held, mid-range industrial infrared thermometer for non-contact readings from -50 to +350 °C (-58 to 662 °F). A built-in laser pointer assists aiming, the 13:1 distance-to-spot ratio suits general use, and the large backlit LCD shows 0.1 ° resolution with over-range indication. Emissivity is fixed at 0.95 and response time is under 500 ms. It is supplied with a 3 point factory calibration certificate (30, 100 and 350 °C), a 9V battery and a protective pouch.
Key features
- Range -50 to +350 °C (-58 to 662 °F)
- Built-in laser pointer
- Large backlit LCD with data hold
- Over-range indication
- 3 point factory calibration certificate
- Specifications
- Downloads
| Part Number | 38/701/0 |
| Brand | Brannan |
| Range | -50 to +350 °C (-58 to 662 °F) |
| Distance to Spot | 13:1 |
| Emissivity | Fixed 0.95 |
| Accuracy | ±4 °C (-50 to 0 °C); ±2% or ±2 °C above 0 °C |
| Resolution | 0.1 °C/°F |
| Response Time | <500 ms |
| Calibration | 3 point factory certificate (30, 100, 350 °C) |
| Laser | Class II, <1 mW |
| Battery | 1 x 9V (included) |
| Net Weight | 172 g incl. battery |
| Compliance | CE, RoHS/WEEE |
| EAN | 5011405387011 |
