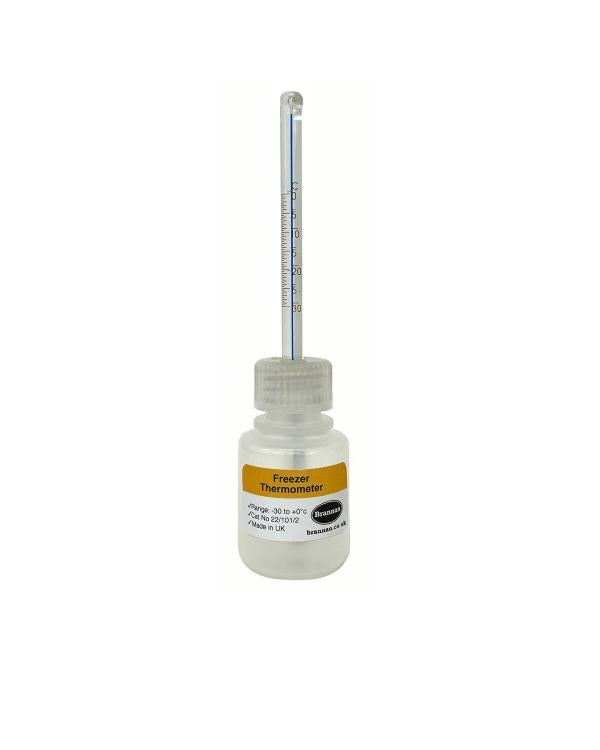

Brannan 22/101/2 | Batch Sampling Thermometer, Freezer | -30 to 0 °C
Brannan 22/101/2 is the freezer model in the batch sampling thermometer range, covering -30 to 0 °C with 0.5 °C graduations and ±0.7 °C accuracy. Its precision thermometer sits sealed in a 30 ml polypropylene bottle whose base holds a core temperature close to that of the frozen samples, so short fluctuations from defrost or door opening do not distort what you read. The bottle should be charged with monopropylene glycol or a similar heat transfer medium first.
Key features
- Freezer range -30 to 0 °C
- ±0.7 °C accuracy, 0.5 °C graduations
- Sealed polypropylene bottle assembly, 145 mm tall
- Mercury-free LO-tox blue liquid

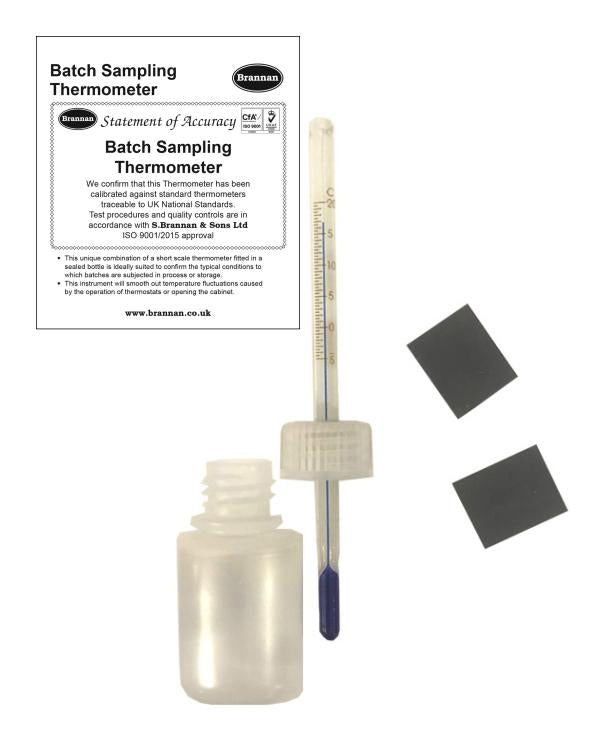

- Statement of accuracy included; made in England
- Specifications
- Downloads
| Part Number | 22/101/2 |
| Brand | Brannan |
| Application | Freezer |
| Temperature Range | -30 to 0 °C |
| Accuracy | ±0.7 °C |
| Divisions | 0.5 °C |
| Bottle | 30 ml polypropylene |
| Filling | LO-tox (mercury-free) |
| Heat Transfer Medium | Monopropylene glycol or similar, added before use |
| Net Dimensions | 145 mm x 35 mm dia. |
| Net Weight | 55.5 g |
| Supplied With | Statement of accuracy |
| Country of Manufacture | England |
| EAN | 5011405221018 |
Related Products

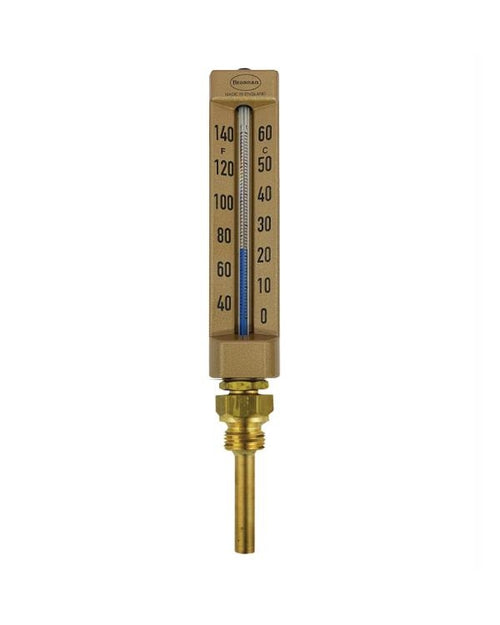

Brannan 87/161/0-M | Industrial V-Line Thermometer | Straight, 110 mm, Aluminium, 0 to +50 °C/°F, 40 mm pocket
