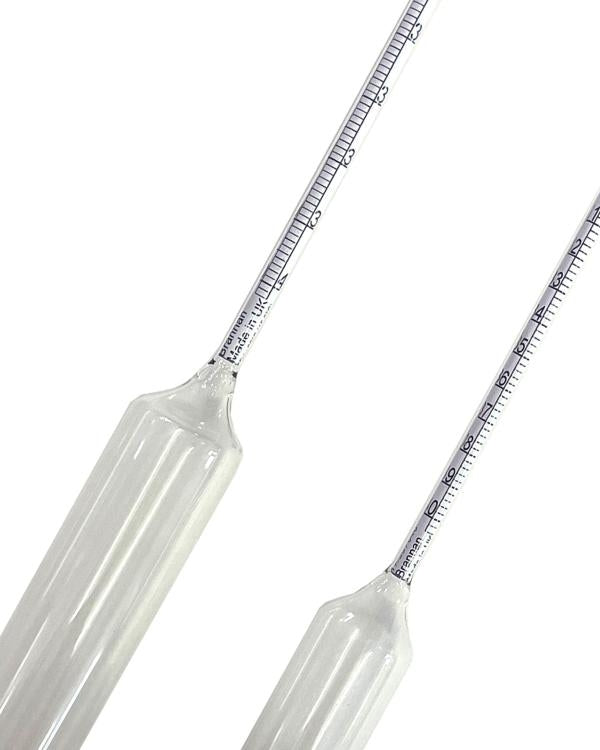

Brannan 10/257/0 | Brix Hydrometer | 0 to 20 Brix, 250 mm
Part 10/257/0 is the 0 to 20 Brix model in Brannan's alcohol hydrometer range, measuring sugar content for winemaking. Graduations on the 10/257/0 are 0.2 apart, with a stated accuracy of ±0.4. Brix on the 10/257/0 is equivalent to the Balling and Plato scales, and the instrument is adjusted at 15.6 °C (60 °F) for a surface tension of 55 mN/m.
Key features
- Reads 0 to 20 Brix in 0.2 divisions
- Accuracy ±0.4 across 0 to 20 Brix
- 10/257/0: 250 mm maximum length, 19 mm bulb
- 10/257/0 weighs about 42 g with its protective plastic tube
- 10/257/0 made in the UK from soda glass
- UKAS or traceable certificate available on the 10/257/0
- Specifications
- Downloads
| Part Number | 10/257/0 |
| Brand | Brannan |
| Scale | Brix (percentage sugar) |
| Range | 0 to 20 Brix |
| Divisions | 0.2 |
| Accuracy | ±0.4 |
| Equivalent Scales | Balling, Plato |
| Adjusted At | 15.6 °C (60 °F) |
| Surface Tension | 55 mN/m |
| Max Length | 250 mm |
| Bulb Diameter | 19 mm |
| Weight | 42 g (incl. protective tube) |
| Calibration Options | UKAS, traceable certificate or statement of conformity |
| Country of Manufacture | UK |
