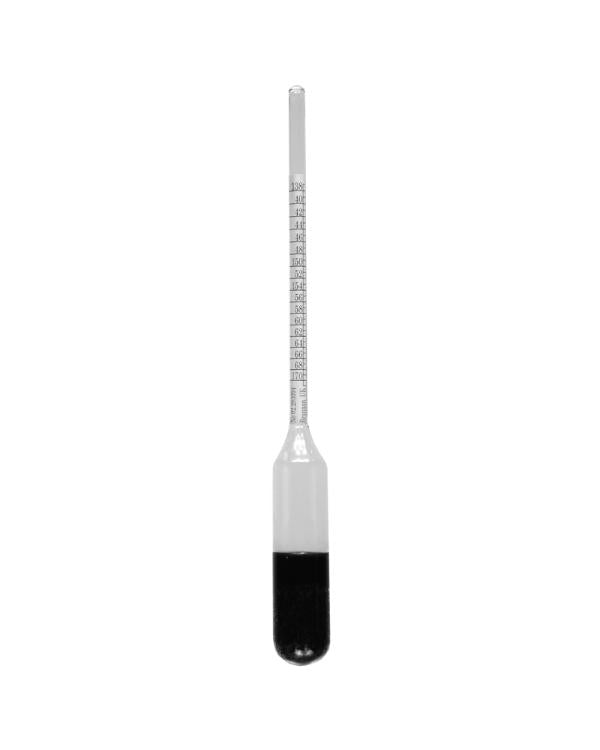

Brannan 10/152/0 | Twaddle Hydrometer | 24 to 48 °Tw, 300 mm

Part Number : 10/152/0

Brannan 10/152/0 is the 300 mm Twaddle hydrometer for the 24 to 48 °Tw band, roughly 1.120 to 1.240 SG. The long stem spreads each single-degree graduation over more scale, which helps when reading heavier-than-water liquids in industries that still work in Twaddle. It is adjusted at 15.6 °C (60 °F) for medium surface tension liquids and made in the UK.

Key features

Second range of the 300 mm Twaddle series: 24 to 48 °Tw
Long-stem 24–48 °Tw scale divided in whole degrees, ±1 °Tw
About 62 g with its 11 g resealable tube
UKAS, nationally traceable certificate or statement of conformity available for the 10/152/0

Availability: in stock

Specifications
Downloads

Part Number	10/152/0
Brand	Brannan
Scale	Twaddle (°Tw)
Range	24 to 48 °Tw
Approx. SG Equivalent	1.120 to 1.240
Divisions	1 °Tw
Accuracy	±1 °Tw
Overall Length	300 mm
Reference Temperature	15.6 °C (60 °F)
Surface Tension	Medium
Material	Soda glass, steel shot ballast, synthetic wax resin
Approx. Weight	62 g incl. 11 g protective tube
Supplied In	Protective resealable plastic tube
Origin	Made in UK
