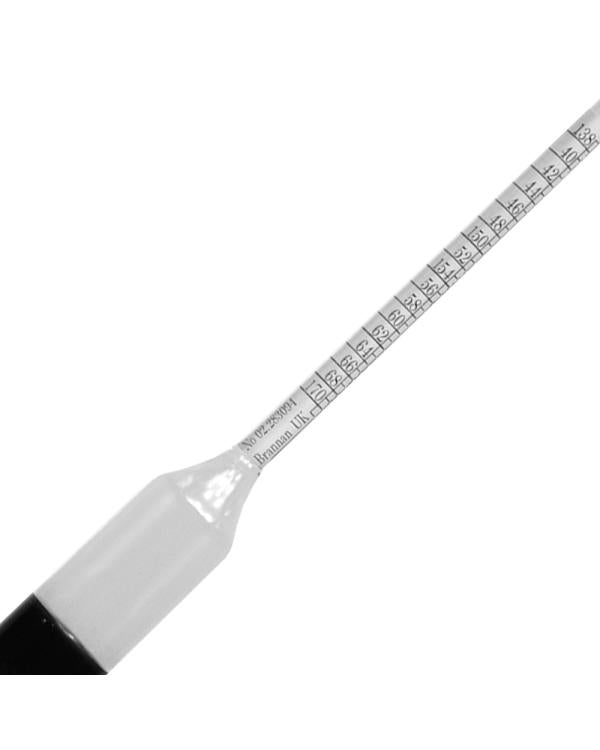

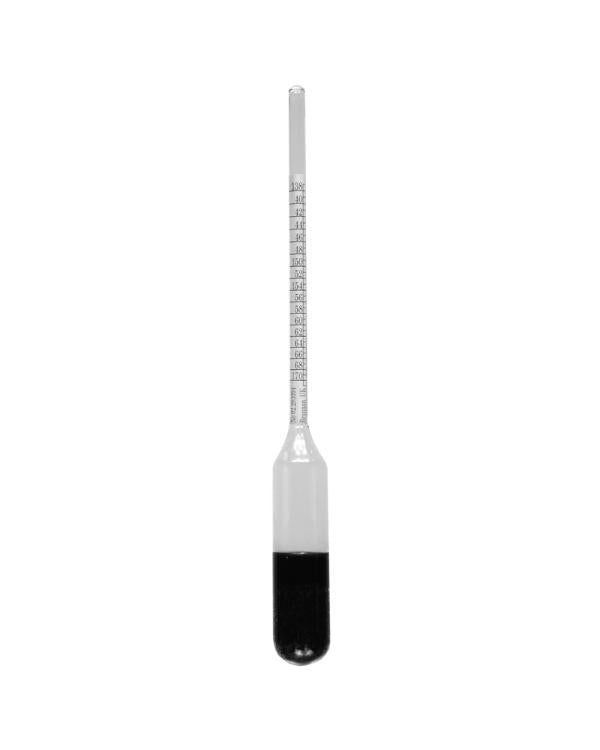

Brannan 10/103/0 | Twaddle Hydrometer | 48 to 74 °Tw, 160 mm

Part Number : 10/103/0

Brannan part 10/103/0 measures 48 to 74 °Tw and is the 160 mm version of the third Twaddle range. Because each Twaddle degree equals 0.005 SG, the scale spans approximately 1.240 to 1.370 SG, a fit for heavier-than-water process liquids. It is made in the UK from soda glass with steel shot ballast.

Key features

48–74 °Tw scale in whole degrees
Approx. 1.240 to 1.370 SG
Short 160 mm format, about 21 g with tube
Set for medium surface tension liquids at 60 °F
UKAS certificate or statement of conformity can be supplied with 10/103/0

Availability: in stock

Specifications
Downloads

Part Number	10/103/0
Brand	Brannan
Scale	Twaddle (°Tw)
Range	48 to 74 °Tw
Approx. SG Equivalent	1.240 to 1.370
Divisions	1 °Tw
Accuracy	±1 °Tw
Overall Length	160 mm
Reference Temperature	15.6 °C (60 °F)
Surface Tension	Medium
Material	Soda glass, steel shot ballast, synthetic wax resin
Approx. Weight	21 g incl. 8 g protective tube
Supplied In	Protective resealable plastic tube
Origin	Made in UK
