Brannan 10/102/0 | Twaddle Hydrometer | 24 to 48 °Tw, 160 mm

Part Number : 10/102/0

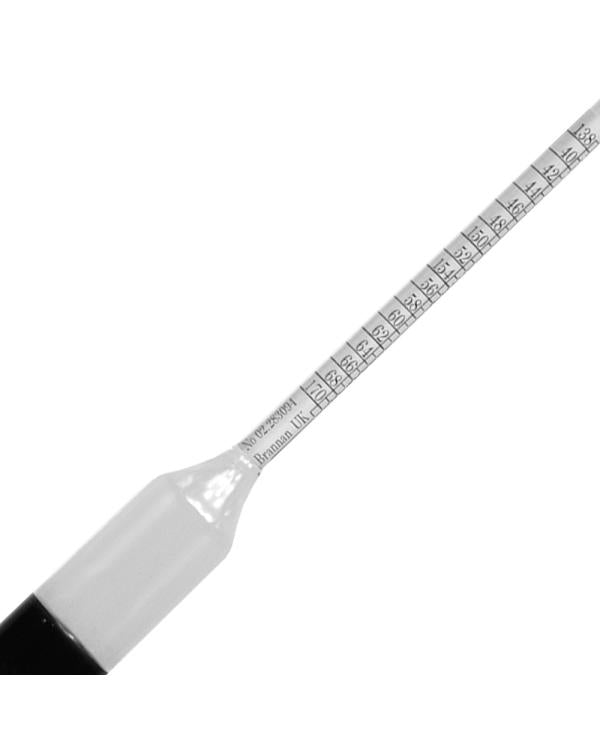

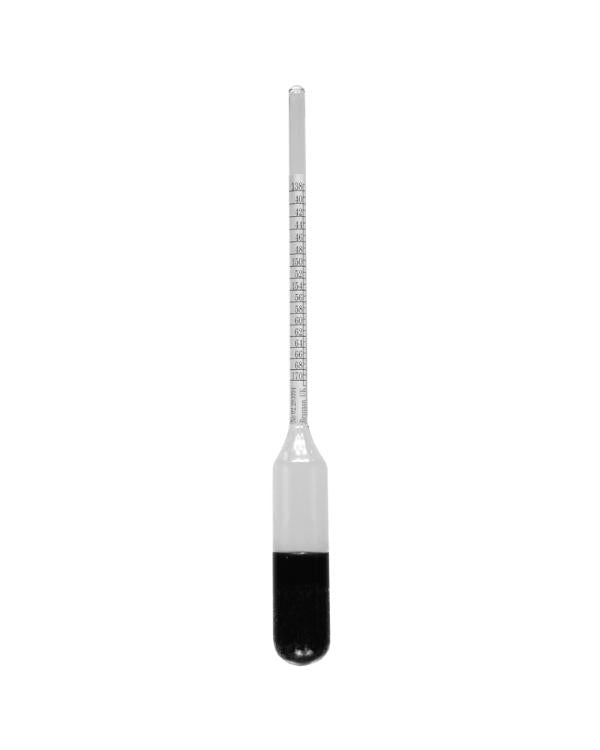

Brannan 10/102/0 is a 160 mm hydrometer scaled from 24 to 48 °Tw, which works out at about 1.120 to 1.240 SG. As the second range of the short Twaddle series, it picks up where 0–24 °Tw ends. Single-degree graduations and an adjustment at 15.6 °C suit routine checks of medium surface tension liquids.

Key features

Range 24 to 48 °Tw, 160 mm overall
One Twaddle degree equals 0.005 SG; this span is approx. 1.120–1.240
Divisions of 1 °Tw with ±1 °Tw accuracy
Packed in a protective resealable tube
10/102/0 is available with UKAS or traceable certification

Availability: in stock

Specifications
Downloads

Part Number	10/102/0
Brand	Brannan
Scale	Twaddle (°Tw)
Range	24 to 48 °Tw
Approx. SG Equivalent	1.120 to 1.240
Divisions	1 °Tw
Accuracy	±1 °Tw
Overall Length	160 mm
Reference Temperature	15.6 °C (60 °F)
Surface Tension	Medium
Material	Soda glass, steel shot ballast, synthetic wax resin
Approx. Weight	21 g incl. 8 g protective tube
Supplied In	Protective resealable plastic tube
Origin	Made in UK
