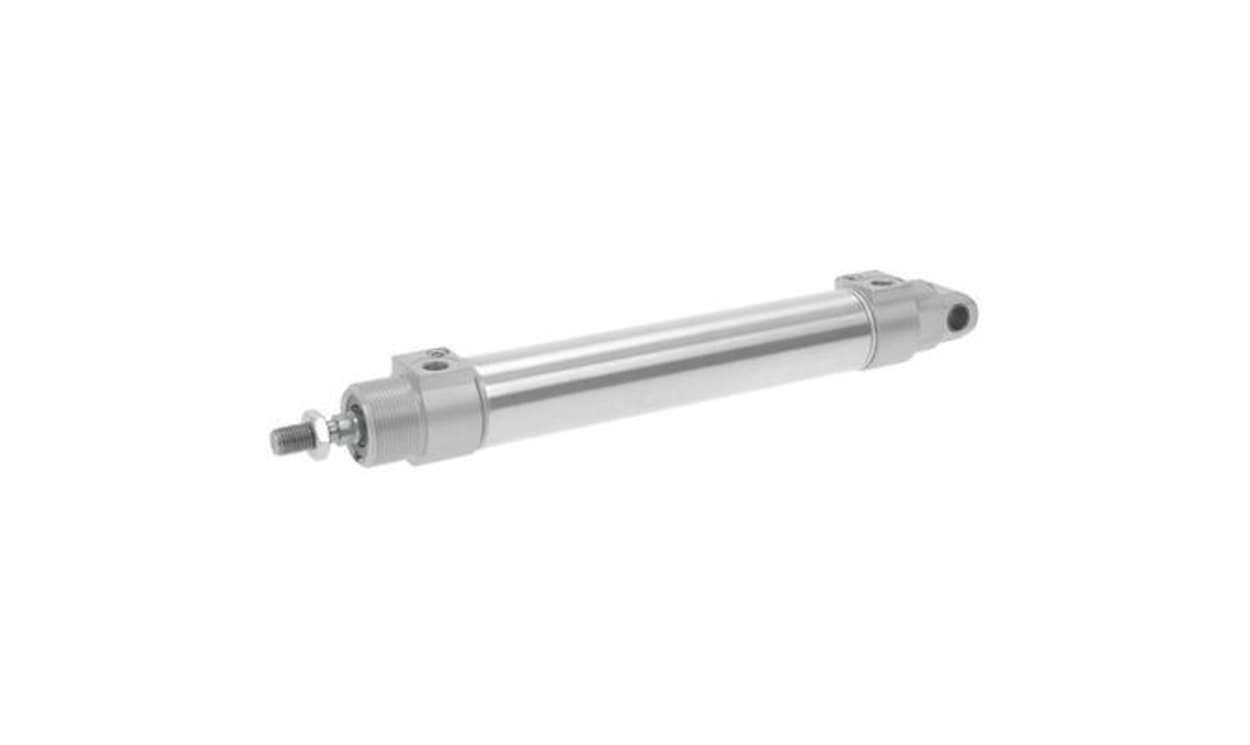

AVENTICS R481609472 Roundline Cylinder - , 50mm Bore, 25mm Stroke, RPC Series, Single Acting

Name: AVENTICS R481609472 Roundline Cylinder - , 50mm Bore, 25mm Stroke, RPC Series, Single Acting
Brand: Aventics
SKU: R481609472
Availability: OutOfStock

Part Number : R481609472

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics round cylinder is part of the Series RPC, expertly designed to meet the diverse needs of industrial automation. It boasts a round profile and a variety of connection options, making it an ideal choice for both specialised packaging applications in the food industry and standard machine automation requirements. Enhanced with easy cleaning capabilities, it ensures adherence to rigorous hygiene standards while delivering reliable performance. Featuring robust construction with stainless steel and aluminium components, this cylinder is built to withstand demanding operating conditions, enhancing longevity and operational efficiency. With parameters ready to accommodate a broad spectrum of motion tasks, it truly represents a blend of functionality and efficiency.

Utilises food-grade lubricants suitable for hygienic environments
Customisable connection options for versatile applications
Offers elastic cushioning for gentle impact response
Single-acting design ensures reliable retraction without pressure
Constructed from stainless steel for robust durability
Equipped with a magnetic piston for enhanced functionality
Wide temperature operating range to suit various environments
Minimum working pressure as low as 2 bar for compatibility with diverse systems
Easy to clean, ensuring compliance with industry hygiene standards
Lightweight design assists in easier installation and operation

Brand	AVENTICS
Manufacturer Series	RPC
Model Number p	R481609472
Action	Single
Stroke	25mm
Bore	50mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6431
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R481609472 Roundline Cylinder - , 50mm Bore, 25mm Stroke, RPC Series, Single Acting

DOWNLOAD CATALOG

R481609472 Datasheet - R481609472 A700000012576486

R481609472 Datasheet - R481609472 A700000012588008
