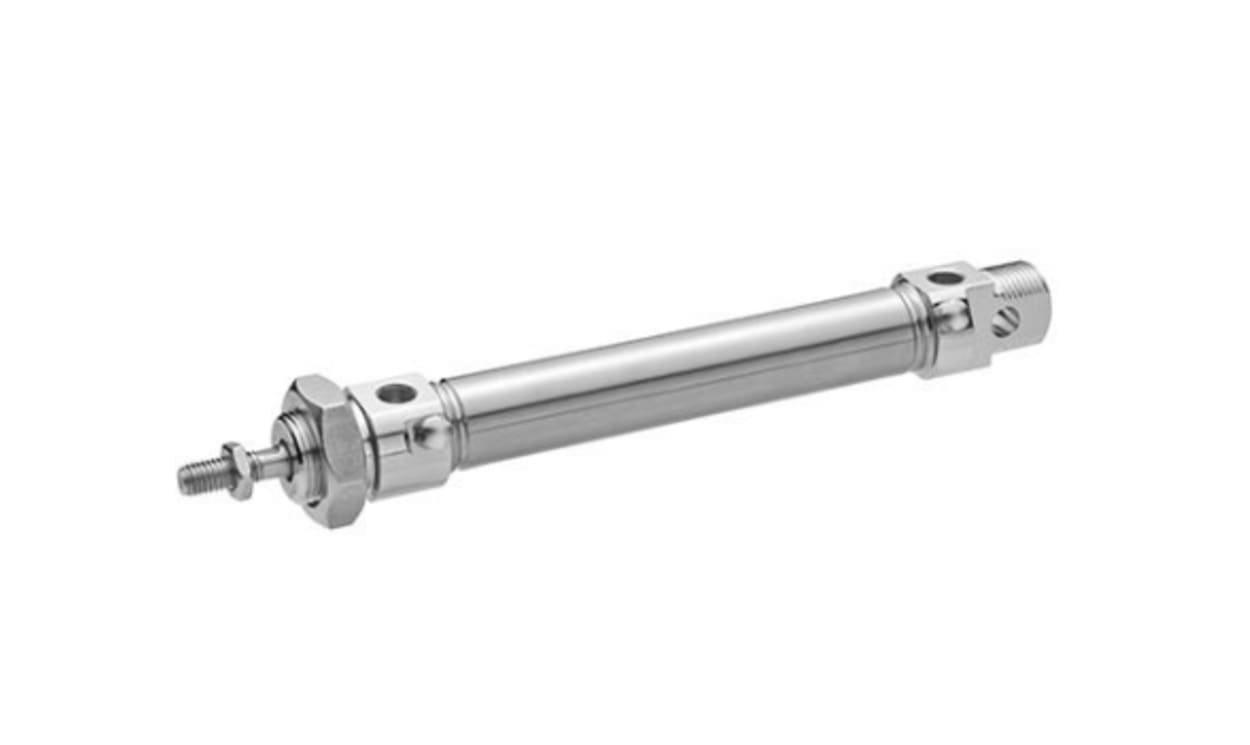

AVENTICS R480651383 Roundline Cylinder - , 20mm Bore, 200mm Stroke, CSL-RD Series, Double Acting

Name: AVENTICS R480651383 Roundline Cylinder - , 20mm Bore, 200mm Stroke, CSL-RD Series, Double Acting
Brand: Aventics
SKU: R480651383
Availability: OutOfStock

Part Number : R480651383

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R480651383
Action	Double
Stroke	200mm
Bore	20mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R480651383 Roundline Cylinder - , 20mm Bore, 200mm Stroke, CSL-RD Series, Double Acting

DOWNLOAD CATALOG

R480651383 Datasheet - R480651383 A700000012669875

R480651383 Datasheet - R480651383 A700000012670084
