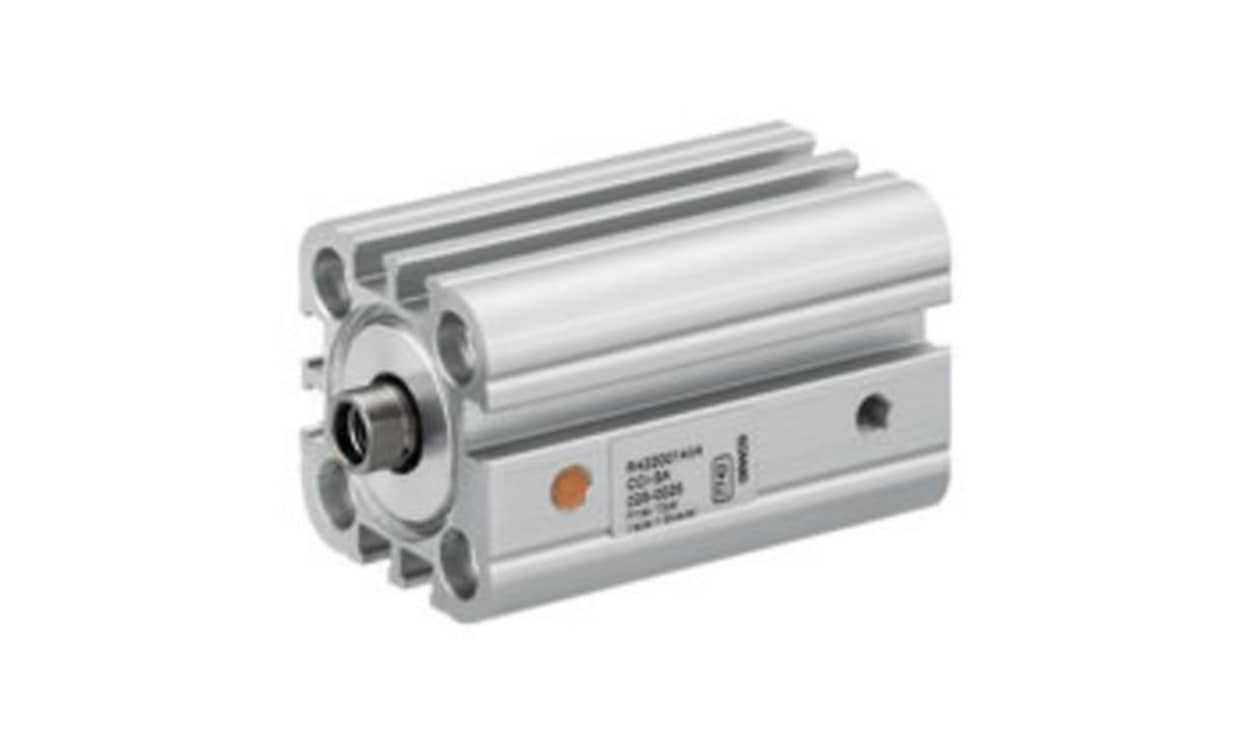

AVENTICS R422001452 | 16 mm Bore, 10 mm Stroke Compact Cylinder | CCI, Single Acting, Male Rod Thread

Name: AVENTICS R422001452 | 16 mm Bore, 10 mm Stroke Compact Cylinder | CCI, Single Acting, Male Rod Thread
Brand: Aventics
SKU: R422001452
Availability: OutOfStock

Part Number : R422001452

This single-acting CCI compact cylinder, AVENTICS R422001452, pairs a 10 mm stroke with a 16 mm bore. A male piston rod thread, M5 pneumatic ports and elastic cushioning are specified for R422001452.

R422001452 bore x stroke: 16 x 10 mm, single acting
Rating: up to 10 bar, -20 °C to +80 °C (R422001452)
Standard of the R422001452: ISO 21287
Piston rod thread on R422001452: male
R422001452 air connection: M5
Cushioning: elastic (R422001452)

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder from the series CCI is engineered to deliver exceptional performance in various industrial applications. Designed in accordance with ISO 21287 standards, the cylinder offers a robust yet sophisticated construction, ideal for environments requiring efficient operation with minimal maintenance. With its intuitive mounting options, rapid installation of sensors, and superior cushioning features, this cylinder enhances productivity while ensuring reliability. It supports extensive stroke lengths and is capable of operating under varying pressures, making it adaptable to diverse tasks. The use of high-quality materials such as aluminium and stainless steel guarantees durability and can withstand the rigours of industrial use, thereby setting a benchmark for innovative engineering.

Innovative design facilitates easy cleaning and maintenance
Quick sensor installation on multiple sides ensures operational flexibility
Exceptional cycle times improve overall efficiency in processes
Durable construction withstands the demands of industrial environments
Supports a wide range of working pressures for versatile applications
Effective elastic cushioning minimises impact and wear during operation
Lower oil content requirements contribute to a cleaner operation

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001452
Bore	16mm
Stroke	10mm
Action	Single
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001452 | 16 mm Bore, 10 mm Stroke Compact Cylinder | CCI, Single Acting, Male Rod Thread

DOWNLOAD CATALOG

R422001452 Datasheet - R422001452 A700000012575800

R422001452 Datasheet - R422001452 A700000012581568
