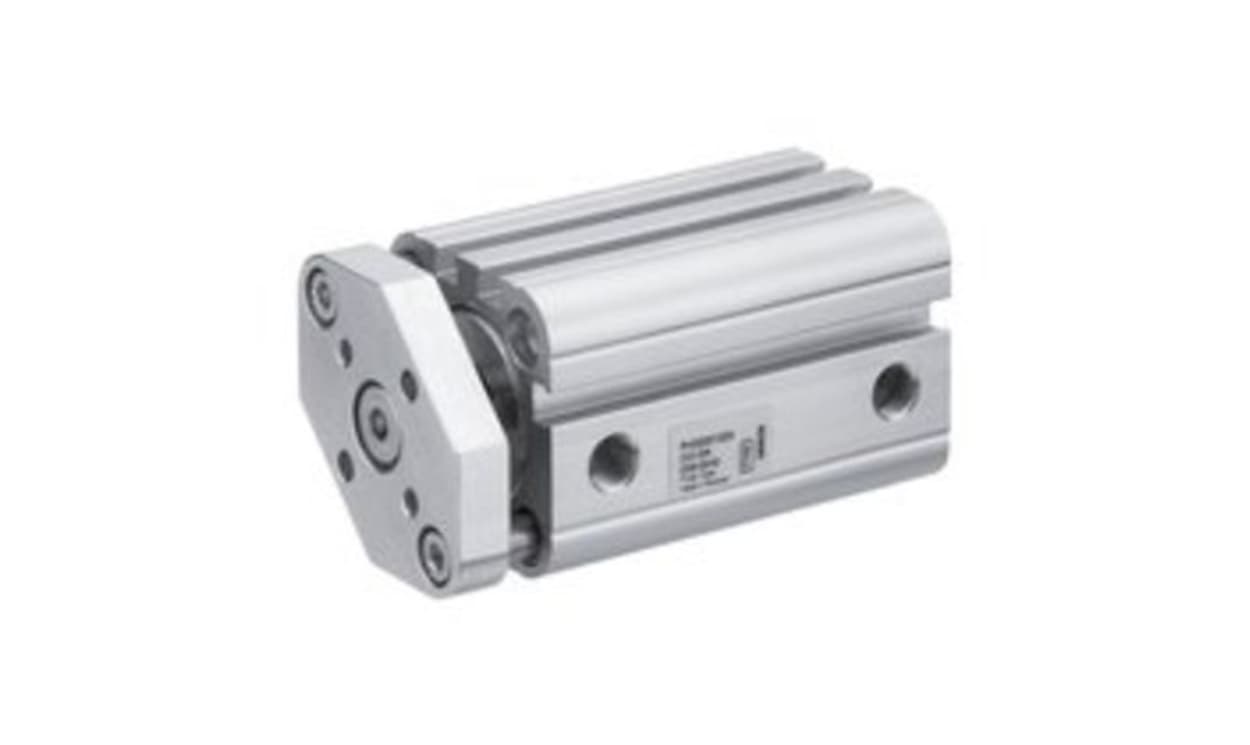

AVENTICS R422001318 Pneumatic Compact Cylinder - , 63mm Bore, 30mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001318 Pneumatic Compact Cylinder - , 63mm Bore, 30mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001318
Availability: OutOfStock

Part Number : R422001318

Availability: Sold out

Detailed Description
Specifications

The Aventics series CCI compact cylinder is engineered to meet the demanding requirements of industrial environments, showcasing a blend of innovative design and ease of maintenance. Designed according to ISO 21287 standards, this cylinder offers exceptional versatility for applications requiring extended strokes while optimising cycle times and managing moving masses. With a unique combination of robust materials and thoughtful construction, it ensures reliability and longevity, making it ideal for a broad range of automation tasks. Furthermore, its user-friendly design allows for quick sensor installation, providing added convenience for integration into existing systems.

Complies with ISO 21287 standards for superior performance
Designed to operate efficiently within a temperature range of -20 °C to 80 °C
Features a double-acting functional principle for enhanced efficiency
Constructed with lightweight yet durable aluminium components
Equipped with elastic cushioning for smooth operation and reduced wear
Flexible installation of sensors along the entire cylinder length
Utilises a stainless steel piston rod for improved strength and resistance to wear
Internal thread piston rod allows for easy connection to other components
Optional ATEX certification caters to explosive atmosphere applications
Designed for medium compatibility with compressed air, ensuring optimal performance

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001318
Action	Double
Bore	63mm
Stroke	30mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
