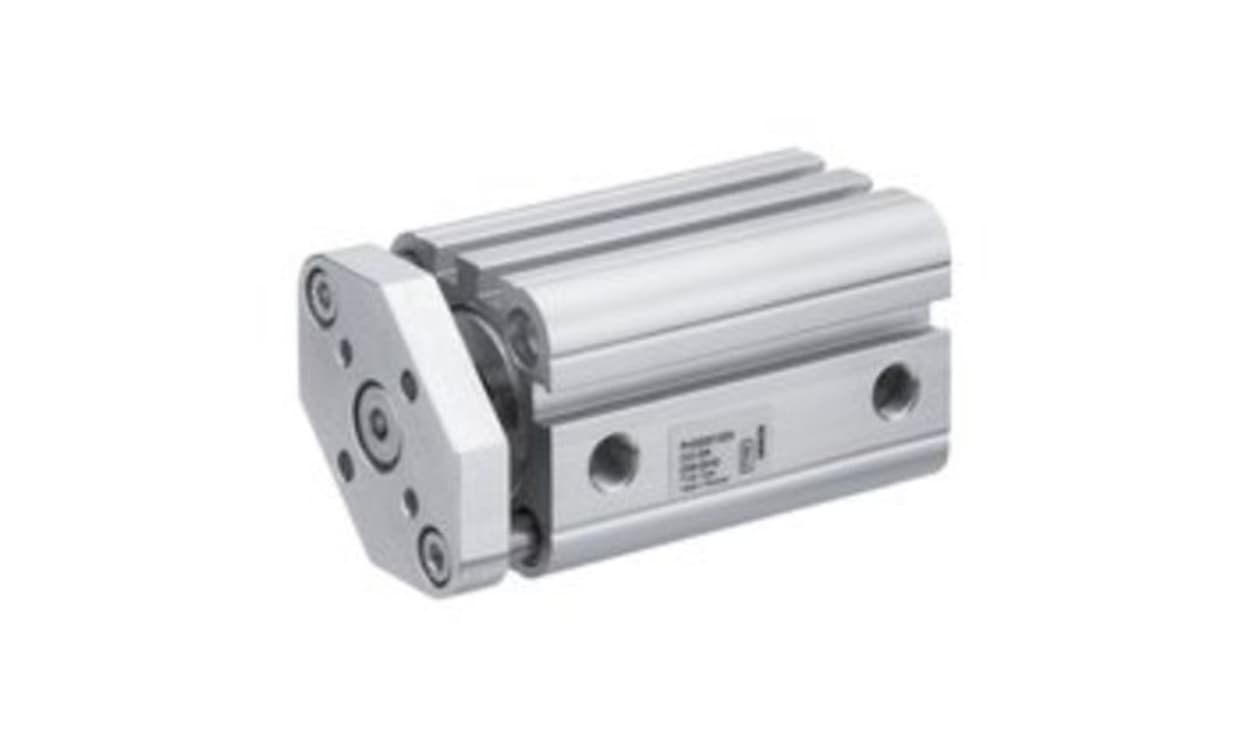

AVENTICS R422001287 | 50 mm Bore, 15 mm Stroke CCI Compact Cylinder | Double Acting, G 1/8

Name: AVENTICS R422001287 | 50 mm Bore, 15 mm Stroke CCI Compact Cylinder | Double Acting, G 1/8
Brand: Aventics
SKU: R422001287
Availability: OutOfStock

Part Number : R422001287

Specified at 50 mm bore by 15 mm stroke, part R422001287 is an AVENTICS CCI compact cylinder for double-acting duty, with G 1/8 air connections and elastic cushioning.

R422001287: bore 50 mm, stroke 15 mm, double acting
G 1/8 air ports for the R422001287
R422001287 rod end: female thread
10 bar maximum pressure, -20 °C to +80 °C range for the 50 x 15 mm R422001287
ISO standard listed for R422001287: ISO 21287

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Compact Cylinder from the series CCI is engineered to deliver outstanding performance and efficiency in various industrial applications. Built to ISO 21287 standards, it boasts a robust design focusing on cleanliness and ease of maintenance, making it suitable for environments where hygiene and reliability are paramount. Its innovative engineering supports long strokes while optimising cycle times, ensuring high efficiency with moving masses. The versatile product design allows for easy installation of sensors along the entire length of the cylinder, enhancing operational flexibility.

Features elastic cushioning for gentle operation
Robust materials enhance durability and longevity
Complies with industry standards for reliable performance
Low maintenance design minimises downtime

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001287
Action	Double
Bore	50mm
Stroke	15mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001287 | 50 mm Bore, 15 mm Stroke CCI Compact Cylinder | Double Acting, G 1/8

DOWNLOAD CATALOG

R422001287 Datasheet - R422001287 A700000012575736

R422001287 Datasheet - R422001287 A700000012580032
