AVENTICS R422001228 | 63 mm Bore, 80 mm Stroke CCI Compact Cylinder | Double Acting, G 1/8

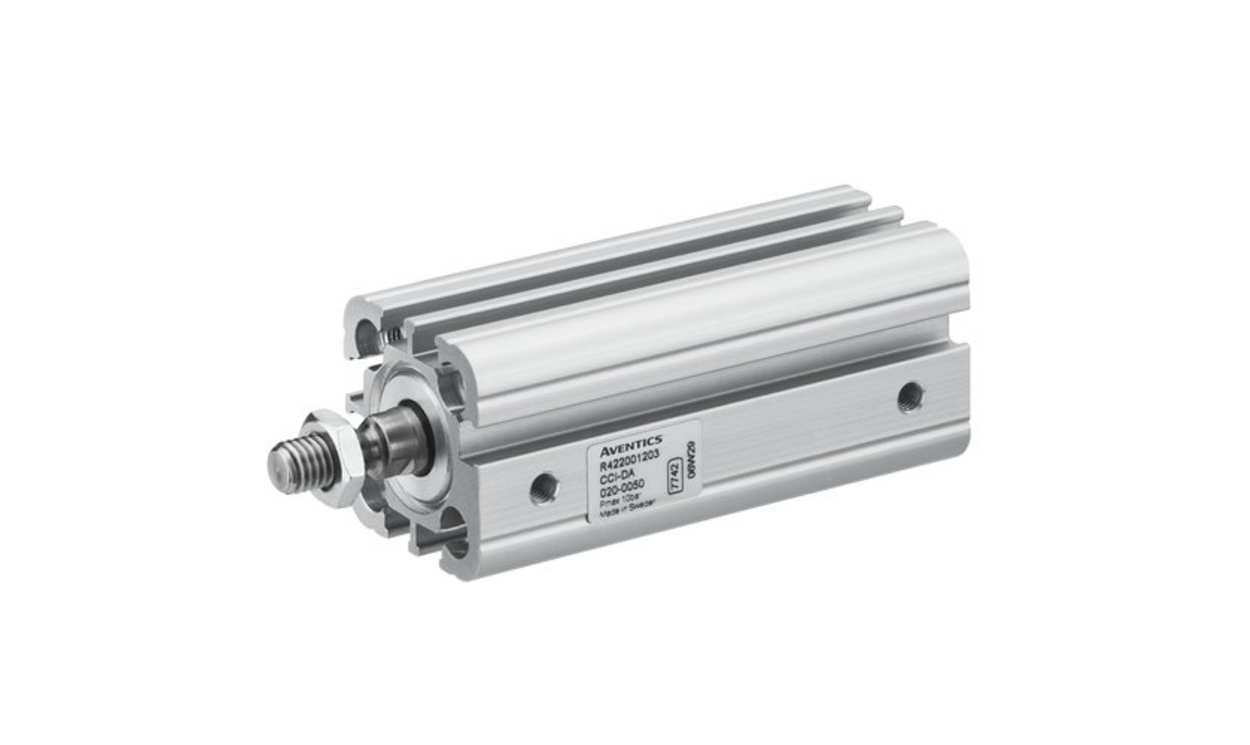

Name: AVENTICS R422001228 | 63 mm Bore, 80 mm Stroke CCI Compact Cylinder | Double Acting, G 1/8
Brand: Aventics
SKU: R422001228
Availability: OutOfStock

Part Number : R422001228

Specified at 63 mm bore by 80 mm stroke, part R422001228 is an AVENTICS CCI compact cylinder for double-acting duty, with G 1/8 air connections and rubber cushioning.

R422001228: bore 63 mm, stroke 80 mm, double acting
G 1/8 air ports for the R422001228
10 bar maximum pressure, -20 °C to +80 °C range for the 63 x 80 mm R422001228
Dimensions 137.4 mm long x 80 mm x 80 mm, weight 1.4 kg

Availability: in stock

Detailed Description
Specifications
Downloads

Series CCI External Piston Rod Thread

CCI Compact ISO Cylinder

Brand	AVENTICS
Manufacturer Series	CCI
Bore	63mm
Stroke	80mm
Action	Double
Port Connection	G 1/8
Cushioning Type	Rubber
Dimensions	137.4 x 80 x 80mm
Width	80mm
Length	137.4mm
Height	80mm
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Weight	1.4kg
Maximum Operating Temperature	+80°C
