AVENTICS 1322510000 Roundline Cylinder - , 25mm Bore, 100mm Stroke, ICM Series, Double Acting

Name: AVENTICS 1322510000 Roundline Cylinder - , 25mm Bore, 100mm Stroke, ICM Series, Double Acting
Brand: Aventics
SKU: 1322510000
Availability: OutOfStock

Part Number : 1322510000

Availability: Sold out

Detailed Description
Specifications

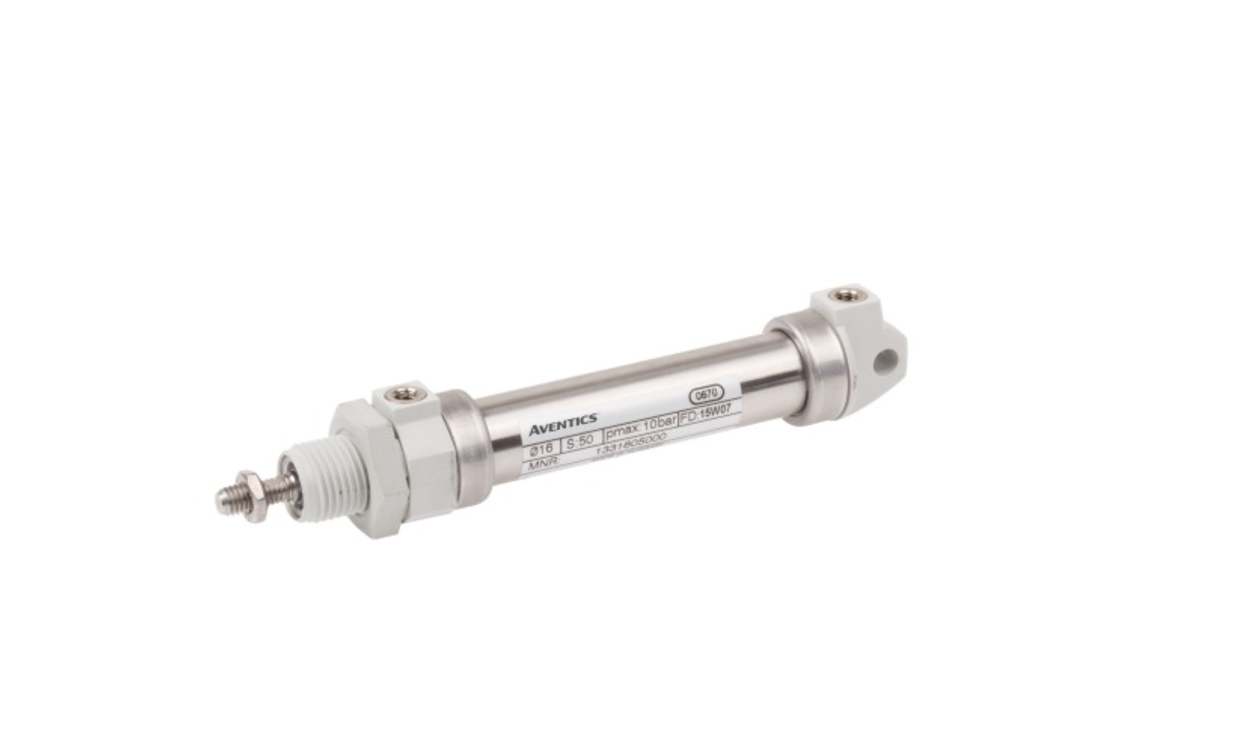

The Aventics Mini Cylinder is designed to excel in demanding industrial environments, offering a cost-effective solution for applications requiring high corrosion resistance. Engineered with a cylinder tube and piston rod made of durable stainless steel, this product is not only robust but also reliable, ensuring optimal performance even under harsh conditions. Its polymer covers enhance longevity while providing lightweight functionality. The Series ICM mini cylinder boasts double-acting operation and elastic cushioning for smooth performance, making it suitable for food processing and various other industrial applications.

Designed to meet industry standards ensuring compatibility across various applications
Operates effectively in extreme temperature ranges ensuring consistent performance
Ideal for use in food processing maintaining strict hygiene requirements
Compact dimensions allow for versatile installation options

Brand	AVENTICS
Manufacturer Series	ICM
Model Number p	1322510000
Action	Double
Bore	25mm
Stroke	100mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
