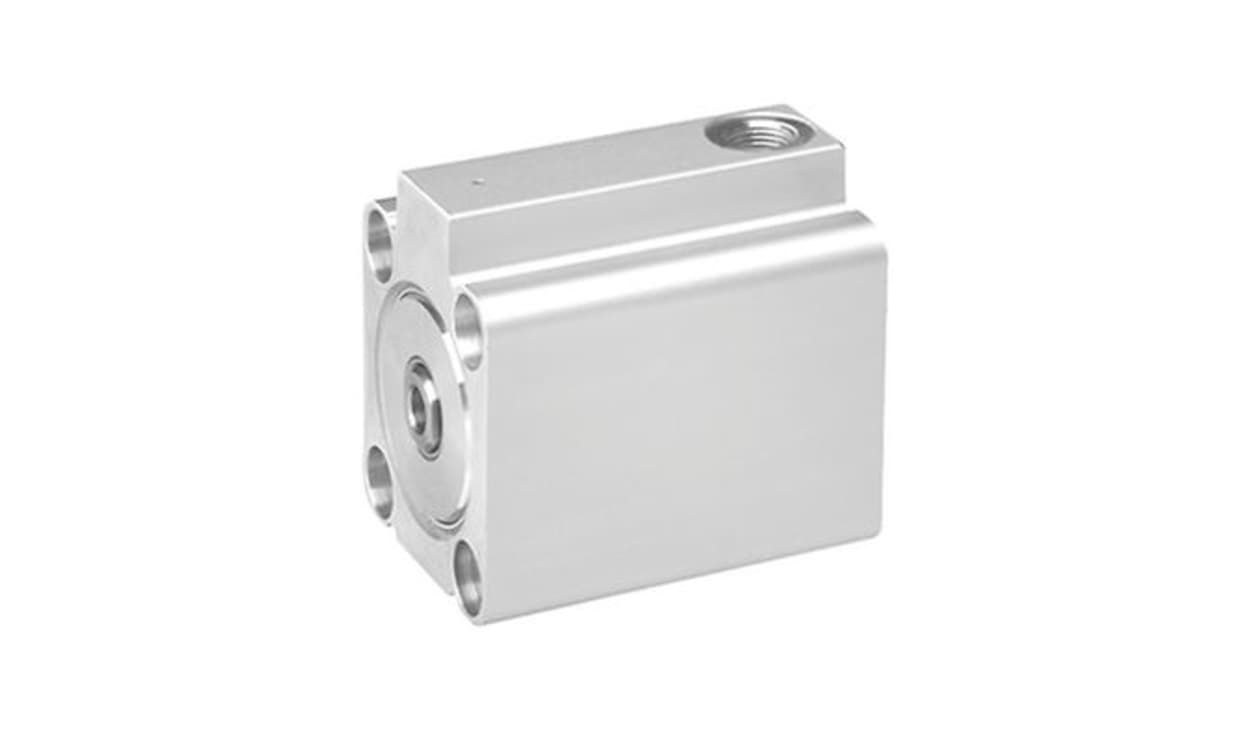

AVENTICS 0822406452 Pneumatic Piston Rod Cylinder - , 40mm Bore, 25mm Stroke, KHZ Series, Single Acting

Name: AVENTICS 0822406452 Pneumatic Piston Rod Cylinder - , 40mm Bore, 25mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406452
Availability: OutOfStock

Part Number : 0822406452

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder from the series KHZ is designed to excel in confined spaces, enabling seamless and safe integration into various machinery applications. The cylinder's single-acting functional principle ensures it retracts efficiently without requiring constant pressure, making it a reliable choice for industrial settings. With a robust construction that includes a stainless steel piston rod and aluminium components, this cylinder meets industry standards for durability and performance. Ideal for applications requiring precision, the KHZ cylinder boasts elastic cushioning for smoother operation and reduced wear over time. Its compact design does not compromise on strength, providing impressive piston forces while maintaining a lightweight profile.

Non-standard design perfect for limited installation spaces
Single-acting mechanism for ease of operation
Constructed with high-quality materials for enhanced longevity
Elastic cushioning for reduced impact and extended service life
Capable of withstanding extreme temperatures from -25 °C to 80 °C
Industry-standard environmental requirements ensure widespread compatibility
Efficient reuse of compressed air leads to cost savings in energy consumption
Integrated magnets aid in positioning and feedback systems

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406452
Action	Single
Stroke	25mm
Bore	40mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Weight	318g
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
