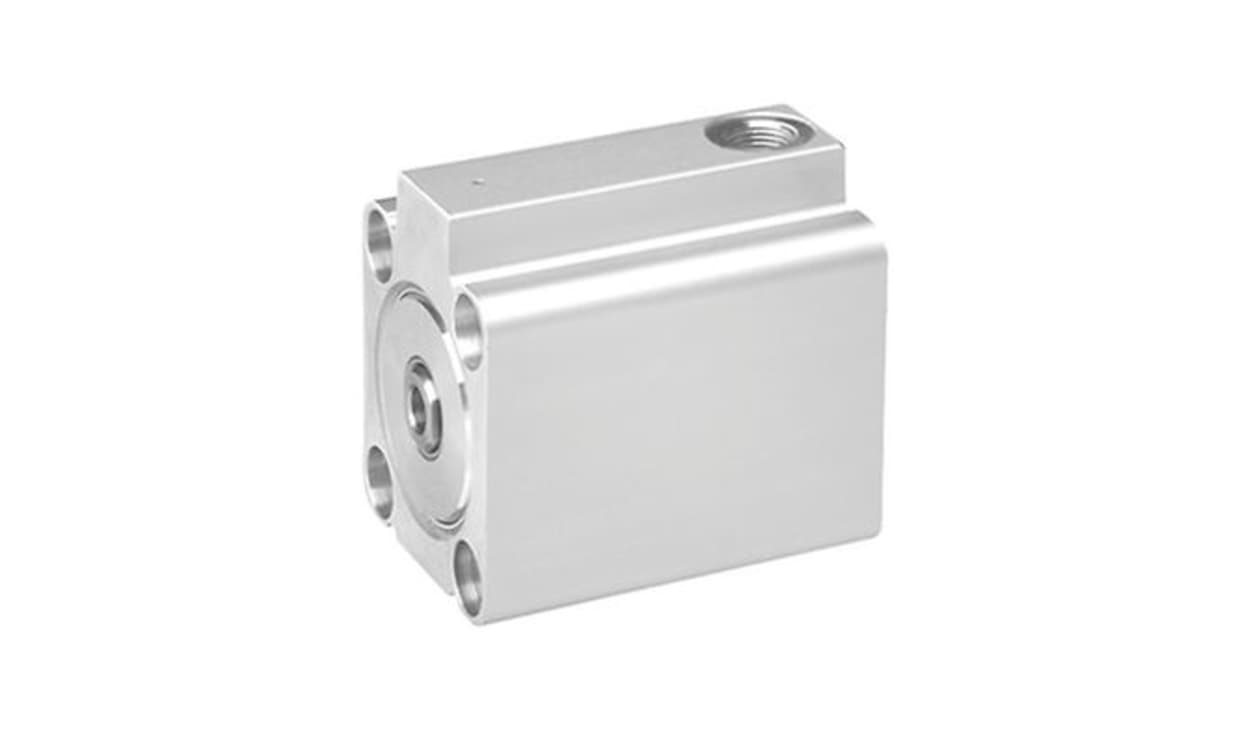

AVENTICS 0822406352 | KHZ Single Acting Piston Rod Cylinder | 40 mm Bore, 25 mm Stroke, G 1/8 Port

Name: AVENTICS 0822406352 | KHZ Single Acting Piston Rod Cylinder | 40 mm Bore, 25 mm Stroke, G 1/8 Port
Brand: Aventics
SKU: 0822406352
Availability: OutOfStock

Part Number : 0822406352

40 mm of bore and 25 mm of travel are what AVENTICS 0822406352 offers, built as a single-acting KHZ piston rod cylinder. Air enters this 40 mm bore unit at G 1/8, and its rod is supplied with a female thread.

Cushioning type: elastic (0822406352)
Female-threaded rod for the 40 mm / 25 mm version
KHZ range part 0822406352
0822406352: maximum operating pressure 10 bar
Operating temperature -25 °C to +80 °C for the 25 mm stroke model

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from the Series KHZ is engineered for precision and reliability in limited spaces. Its compact design makes it an ideal choice for applications requiring reliable performance without compromising on space. Whether in manufacturing or machinery assembly, this cylinder facilitates smooth operations while ensuring safety and efficiency. The non-standard short-stroke design complements its ability to integrate seamlessly within complex systems. Crafted with high-quality materials, this cylinder assures durability and consistent functionality in a variety of industrial environments. The elastic cushioning enhances operational safety, while the internal thread on the piston rod allows for flexible installation options. With its robust technical specifications, this product meets industry standards and is poised to deliver outstanding results in diverse settings.

Offers a single-acting functional principle for efficient operation
Elastic cushioning ensures reduced impact during operation
Integrated design allows for easy installation in confined spaces
Wide ambient temperature range supports diverse operating environments
Manufactured from robust materials, ensuring long-lasting performance
Conducts high piston forces effectively for varying applications
Compatible with clean, dry compressed air for optimal functionality

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406352
Action	Single
Stroke	25mm
Bore	40mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822406352 | KHZ Single Acting Piston Rod Cylinder | 40 mm Bore, 25 mm Stroke, G 1/8 Port

DOWNLOAD CATALOG

0822406352 Datasheet - 0822406352 A700000012572086
