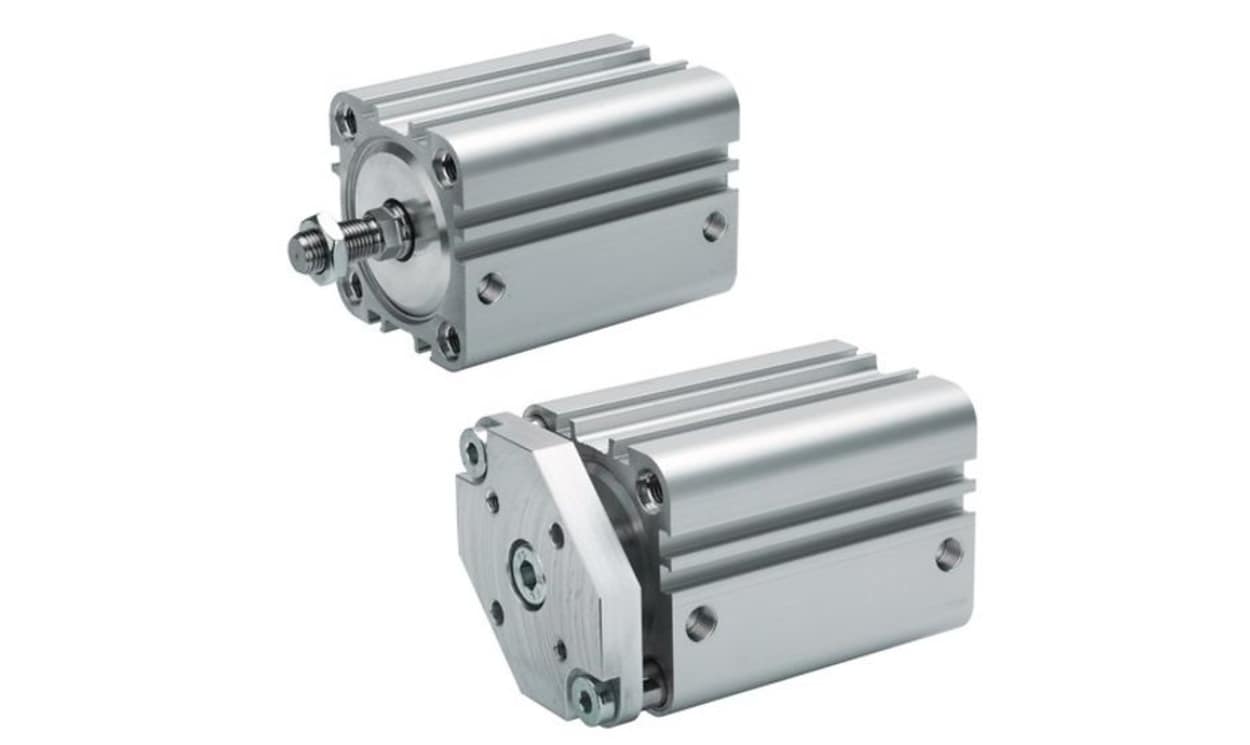

AVENTICS 0822392006 | Pneumatic Compact Cylinder | 25 mm Bore, 40 mm Stroke, KPZ Series

Name: AVENTICS 0822392006 | Pneumatic Compact Cylinder | 25 mm Bore, 40 mm Stroke, KPZ Series
Brand: Aventics
SKU: 0822392006
Availability: OutOfStock

Part Number : 0822392006

40 mm of stroke on a 25 mm bore defines the AVENTICS 0822392006, a double-acting KPZ series compact cylinder. On the 0822392006, a female piston rod thread is combined with M5 porting and operation up to 10 bar.

Elastic cushioning
Piston rod thread: female
KPZ series, double-acting
Maximum operating pressure: 10 bar
Operating temperature -20 °C to +80 °C
M5 air connections

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KPZ compact cylinder is expertly designed for versatility in a myriad of industrial applications. With an emphasis on space-saving dimensions and robust functionality, this cylinder adheres to the NFE 49 004 standard, making it an ideal choice for environments demanding precision and reliability. The KPZ series incorporates double-acting functionality with elastic cushioning, ensuring smooth operation while maintaining high performance. Additionally, options for ATEX certification allow for usage in more challenging environments, further enhancing its appeal to industry professionals. Offering a variety of configurations, this cylinder can accommodate diverse operational requirements while retaining the durability expected from premium manufacturing.

Compact design maximising space efficiency in installations
Double-acting functionality provides enhanced operational versatility
Compliant with industry standard NFE 49004 for reliability
Offers elastic cushioning for smooth and controlled movements
Variety of configurations available to meet specific application needs
ATEX certification options for enhanced safety in hazardous environments
Environmentally conscious design suitable for diverse industrial requirements
Wide ambient temperature range ensuring functionality in extreme conditions
Offers 50 μm maximum particle size protection for medium safety
Smooth operation maintained even at varying pressures and temperatures

Brand	AVENTICS
Manufacturer Series	KPZ
Model Number p	0822392006
Stroke	40mm
Action	Double
Bore	25mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822392006 | Pneumatic Compact Cylinder | 25 mm Bore, 40 mm Stroke, KPZ Series

DOWNLOAD CATALOG

0822392006 Datasheet - 0822392006 A700000012564588
